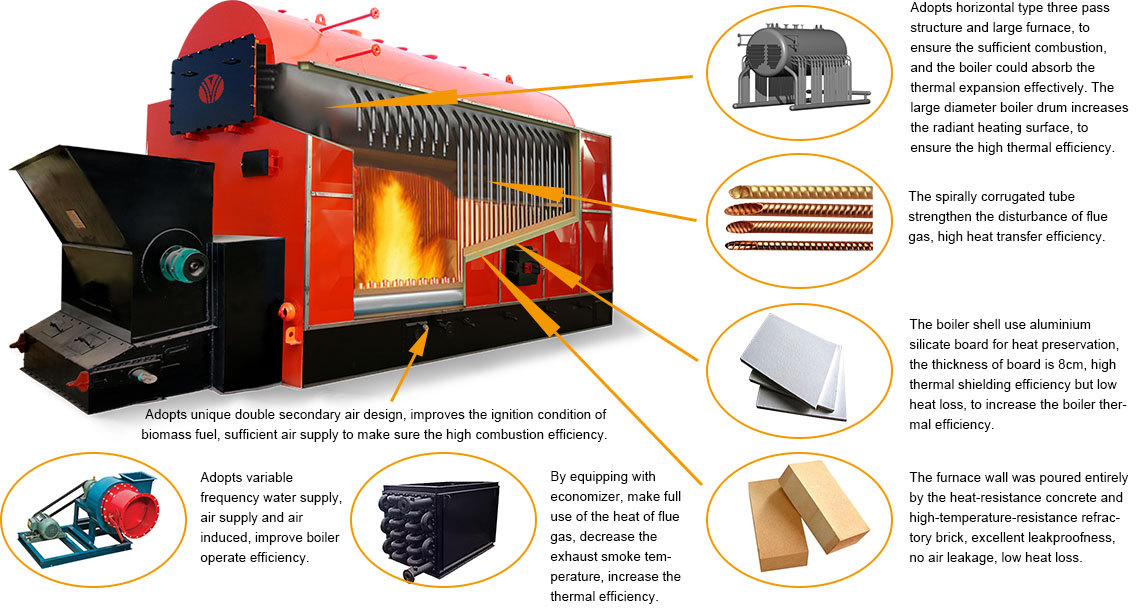

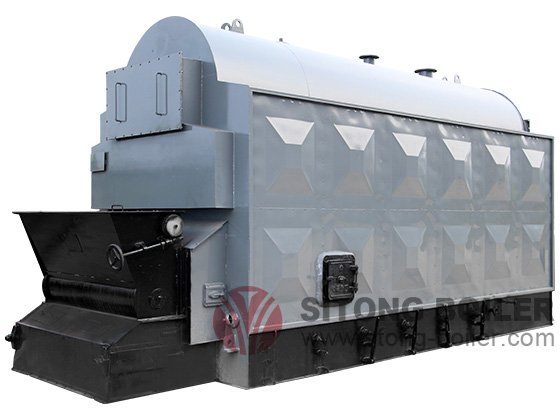

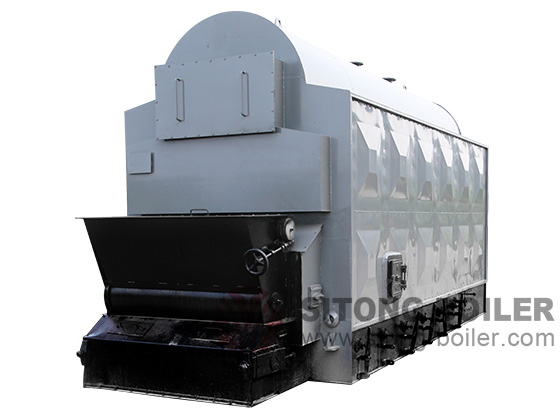

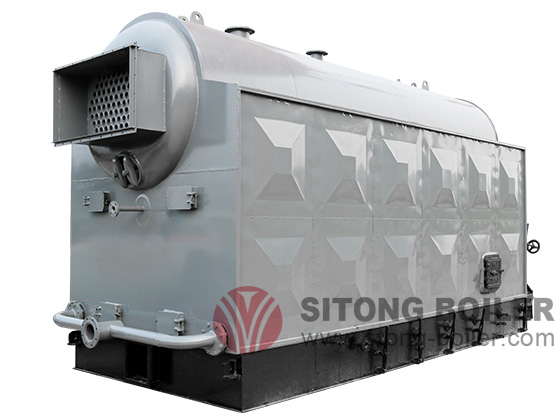

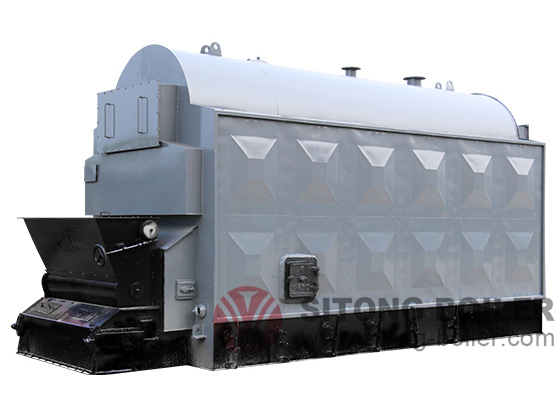

DZL series coal fired hot water boiler is single drum water tube and fire tube boiler, combustion equipment is chain grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and screw fire tube in the drum are convection heating area. This coal fired hot water boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The drum is welded assembly by cylinder and front back tube plate. This furnace structure in reasonable arrangement and high efficiency. This series boiler adopts several environmental protect measures (bag dust collector, double towers desulfurization, etc.) to meet the national emission requirement This boiler uses the new scientific achievement, such as arch tube plate, screw fire tube to solve the problem of tube plate flaw, water wall tube explosion, low efficiency, insufficient output, poor adaptability of coal, improve the heat transfer.
| Model | Rated power (MW) | Rated pressure (Mpa) | Supply water Temperature (℃) | Return water temperature (℃) | Fuel consumption (kg/h) | Thermal Efficiency (%) | Overall Dimension L*W*H（m） | Weight (t) |
| DZL0.7 | 0.7 | 1.0 | 95 | 70 | 151 | 82 | 5.1x2.2x3 | 17 |
| DZL1.4 | 1.4 | 1.0 | 95 | 70 | 302 | 82 | 5.5x2.3x3.3 | 23 |
| DZL2.8 | 2.8 | 1.0 | 95 | 70 | 600 | 82 | 6.6x2.6x3.6 | 25 |
| DZL4.2 | 4.2 | 0.7 | 95 | 70 | 880 | 82 | 7.5x2.9x3.8 | 35 |
| DZL5.6 | 5.6 | 0.7 | 95 | 70 | 1150 | 82 | 8.1x3.1x3.8 | 45 |
| Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2. Available fuel: coal, lower heating value: Q≈21,000 KJ/Kg |
||||||||
The combination of food and health is in line with the current goal pursued by people in this era of abundant material life. In addition to various types of nut kernels, dried fruit is also a very popular fashion food in the market nowadays. As we know, d...
10ton Wood Fired Double Drum Boiler in Bangladesh...
Due to the increasingly stringent requirements on environmental protection in various countries, a household paper manufacturing base in the Philippines has been plagued by waste water problems for a long time. The government is very strict about the scal...
Multiple processes during the edible oil production require heat source. Steam boilers are commonly used as the heat medium for direct or indirect heating. Currently, soybean oil, palm oil, and rapeseed oil occupy the position of the world's three major...
Shen Jiayi’s customer, who comes from UK, visited sitong boiler factory on Sep, 27, 2015. Because of the time equation, our sales manager Shenjiayi and engineer Mrs Li waited for our customer outside hotel until he got up at 10:00 AM. Then they visited ou...
This client is from Pakistan who purchased our hot air stove for his sesame factory.According to their factory video we designed and supplied a good scheme which can maximize the interests of customers ,we tried our best to supply them our honest ,attenti...
Due to the increasingly stringent requirements on environmental protection in various countries, a household paper manufacturing base in the Philippines has been plagued by waste water problems for a long time. The government is very strict about the scal...
2t/h steam Boiler is Used for Sri Lanka Rice Mill, the boiler is equipped with moving grate, and the fuel is rice husk. In rice mill factory, there is a large amount of rice husk produced during rice processing, rice husk boiler could take advantages of t...
Multiple processes during the edible oil production require heat source. Steam boilers are commonly used as the heat medium for direct or indirect heating. Currently, soybean oil, palm oil, and rapeseed oil occupy the position of the world's three major...
n June 2015, customers came from Indonesia visited our factory, they would like to choose a boiler for plywood production, and use the waste scrap as the fuel. Customers paid attention to the specifics and quality of furnace refractory. The quality certif...

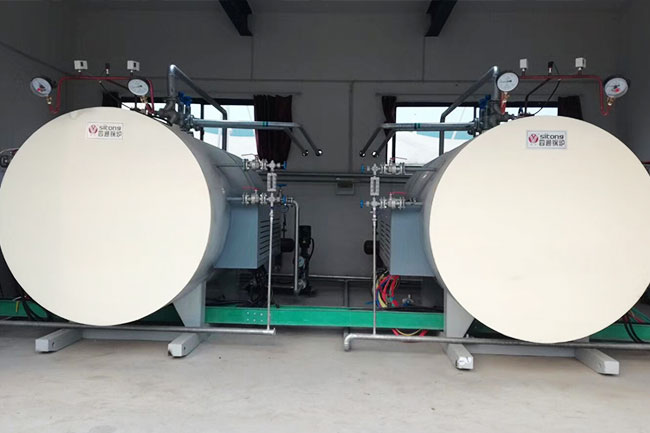

Sitong electric boiler thermal efficiency could reach 99%, and there is no NOx released to the air. The boiler adopts high quality electrical heated tube, work for about 20000 hours. It uses stainless steel electric heating tubes has high compression stre...
