Waste Heat Boiler

Introduction:
Organic heat carrier boiler has been widely used in textile, printing and dyeing, chemical, food leather, food processing and any other industry in recent 20 years. Due to the return oil temperature is higher, generally in the 200-250℃，and the boiler exhaust gas temperature is also higher, which can be reach 300-350℃. If the heat from flue gas emission directly into the atmosphere, which may cause a lot of heat loss in vain. At present, energy shortage and its price decreases constantly, energy saving has become the demand of a national sustainable development, which is also the gripper for each enterprise to reduce the cost in development. Therefore, Sitong Boiler design a number of flue gas waste heat boiler, which can save energy and reduce cost.
Application:
The flue gas waste heat boiler can be used in power generation plant and supply heating for city, hotel, hospital, bath center, textile industry, wood processing, paper making and other industries
Advantages:
1. Energy saving and reduce production cost
2. High efficiency, safe and stable in the operation
3. Low investment and turn waste into wealth
4. Small footprint and easy to install

Parameter

Model	Evaporation capacity(t/h)	Rated Steam Temperature (℃)	Working Pressure(Mpa)	Feed Water Temperature(℃)	Heating Area(㎡)	Inlet Gas Capacity (m³/h)	Inlet Gas temperature (℃)	Exhaust Gas Temperature(℃)
Q11/950-4-2.5/400	4	400	2.5	104	697.5	11000	950	190
Q15/800-5-2.6/401	5	400	2.6	140	904.5	15000	800	180
Q26.8/900-9.8-2.5/400	9.8	400	2.5	104	1051	26800	900	159
Q38.2/930-15-2.5/400	15	400	2.5	104	1121	38200	930	150
Q50/1100-25-2.5/400	25	400	2.5	105	1042.5	50000	1100	157.1
Q70/930-25-3.82/450	25	450	3.82	20	1881.1	70000	930	150
QC80/850-25-3.82/450	25	450	3.82	100	1932.7	80000	850	150
QC125/950-50-3.82/450	50	450	3.82	104	3965	125000	950	148.2
Q185/930-60-5.29/485	60	485	5.29	104	5151	185000	930	150
Q215.5/863-60-5.29/480	60	480	5.29	104	6661	215509	863	140
Q193/875-65-5.3/490	65	490	5.3	104	7353	193000	875	143
QC200/930-80-3.82/450	80	450	3.82	104	6628	200000	930	150
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2.Hear is a part of parameters, please consult for more specific details.

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.

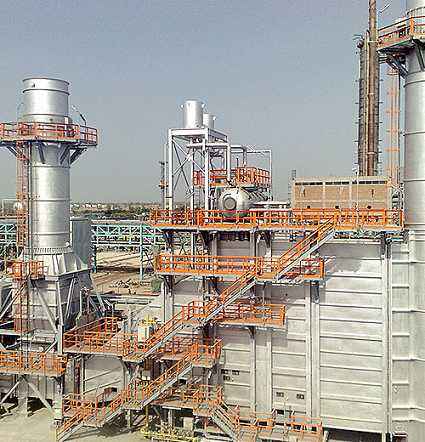

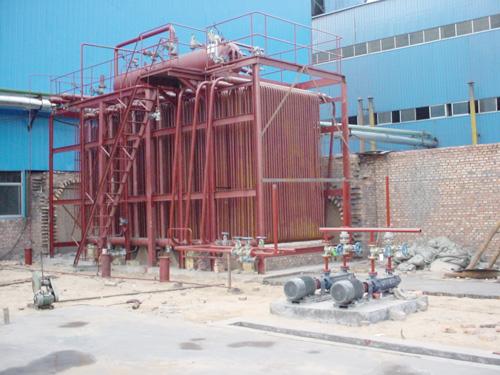

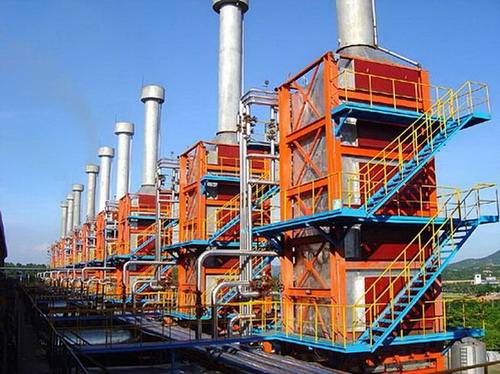

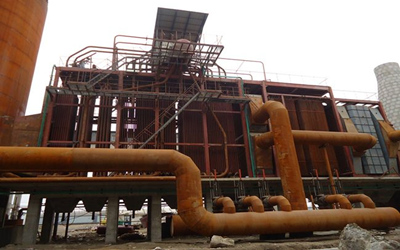

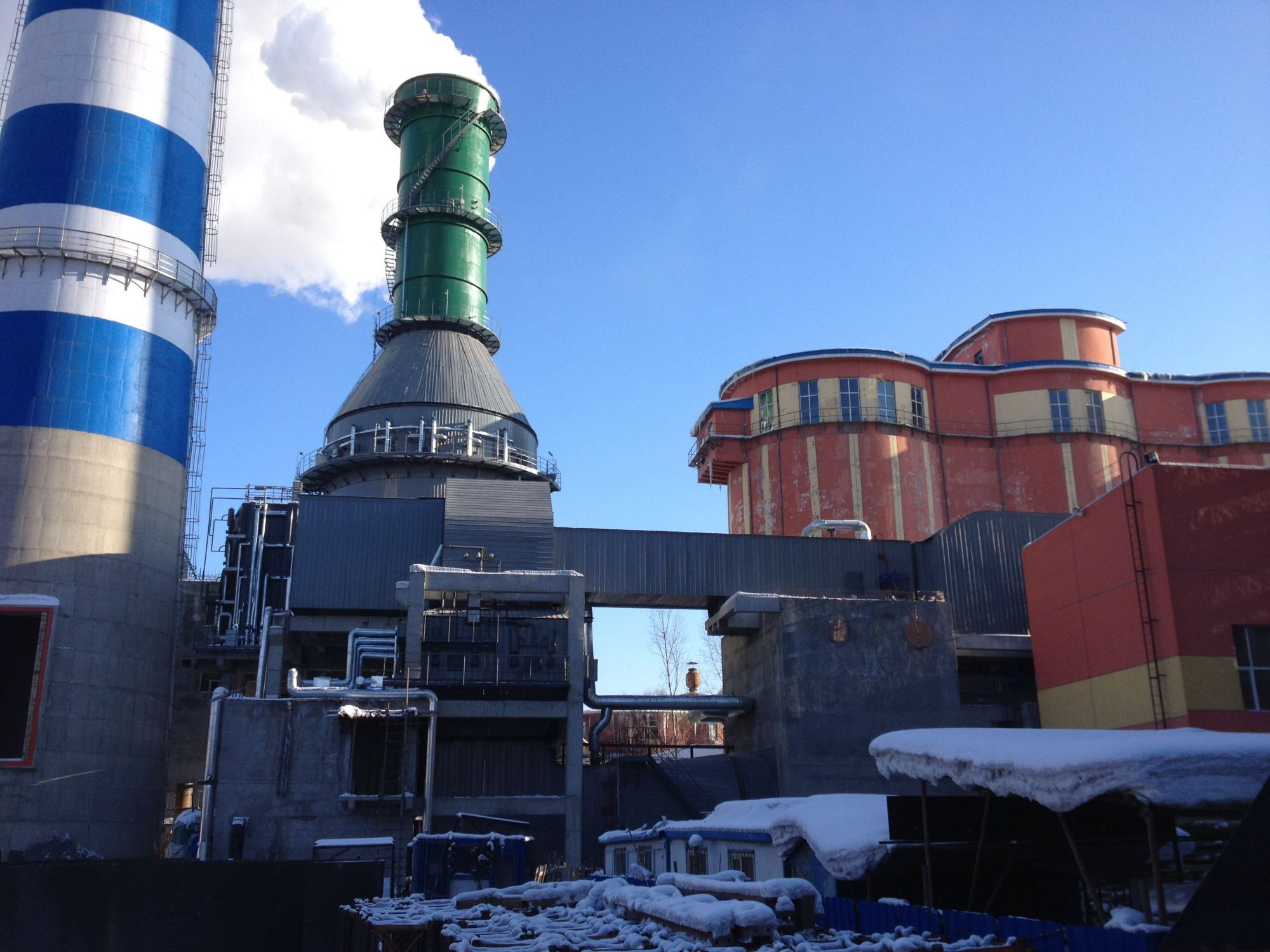

case
