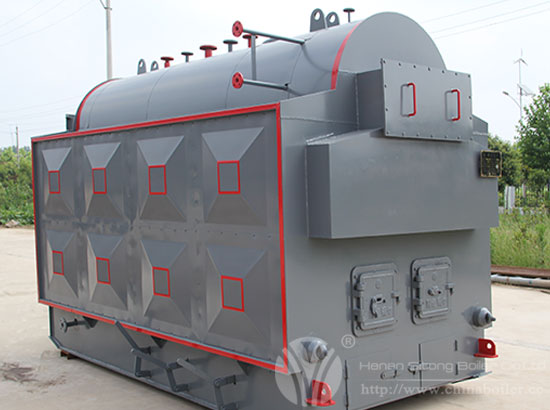

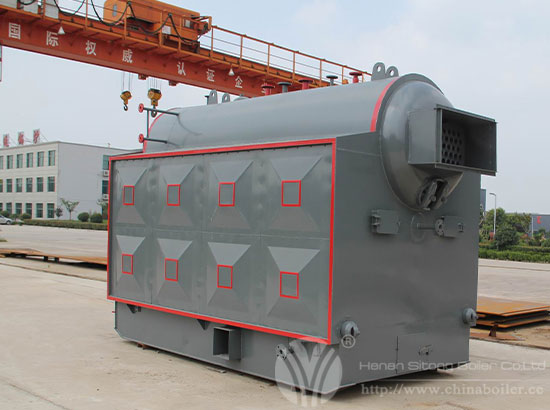

SZL Series Steam Generator

Capacity 2~20 t/h
Steam Pressure 1.0/1.25/1.6/2.5 Mpa
Available Fuels Coal/wood pellet/rice husk/ peat pellet/biomass
Application pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage
Certification CE, SGS, BV, ISO9001, CCC, etc

We're here to help:Easy ways to get the answers you need

Product description
Parameter
Inquiry

Introduction:

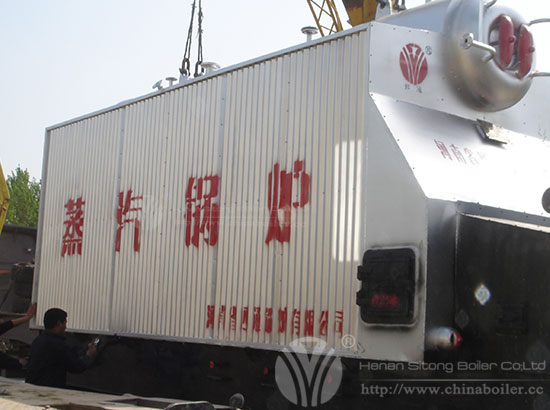

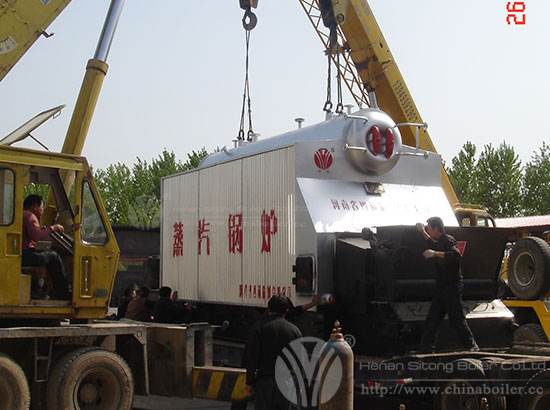

SZL series steam generator is the double drum longitudinal type chain grate steam generator. It is designed by our engineer steam with the most advanced technologies domestic and aboard. It can not only generate steam but also can heat water as the media. Compared with the single drum (DZL) series steam generator, the double drum has the powerful heating capacity, high thermal efficiency and safety.

Application:

1.Petroleum and chemical industry, polymerization, melting, condensation, distillation, forced heat preservation.

2.Textile printing and dyeing industry: hot finalize design, thermosol dyeing, baking, calender drying and hot air stenter.

3.Plastic and rubber industry: hot-press, hot-extent, extrusion, calendering, injection, conveyor dryer, etc.

4.Paper industry dry, corrugated paper processing, glue roller, etc.

5.Machinery industry: spray drying of printing, assembly processing, dry cleaning.

6.Food industry: baking bread and baking cookies, cooking pot, autoclave and conveyor dryer.

Performance Advantages:

1.The steam generator absorb the advantage of the fast assembly, compact structure, the boiler room is the single layer layout, convenient for installation, little investment, short period, easy operation.

2.By adjusting the secondary speed air volume, the speed of fuel burning can be accurately controlled and reduce the energy loss.

3.Adopt scale chain grate to achieve mechanized feeding uniformly, combustion is stable and easy to control.

4.Unlikely for tempering, easy for cleaning dust of the steam generator.

5. 20t/h assembly steam generator is made of the front furnace, back furnace, convection bank, economizer and chain grate, and assembly to be the whole set when leave the factory.

Parameter

Model	Rated evaporation capacity(t/h)	Working pressure(MPa)	Rated steam temperature(℃)	Fuel type	Overall dimension part for transportation LWH（mm）
SZL2-0.8/1.0/1.25/1.6/2.5-T	2	0.8/1.0/1.25/1.6/2.5	175/184/194/204/226	II-class soft coal, Low heat value Q≈21000KJ/Kg	5500×2350×3650
SZL4-1.0/1.25/1.6/2.5-T	4	1.0/1.25/1.6/2.5	184/194/204/226		7730×2360×3520
SZL6-1.0/1.25/1.6/2.5-T	6	1.0/1.25/1.6/2.5	184/194/204/226		up 6150×2840×3540	down7275×2852×2580
SZL8-1.0/1.25/1.6/2.5-T	8	1.0/1.25/1.6/2.5	184/194/204/226		up 6971×2933×3540	down 8056×2945×2580
SZL10-1.0/1.25/1.6/2.5-T	10	1.0/1.25/1.6/2.5	184/194/204/226		up 7855×3240×3540	down 9025×3200×2580
SZL15-1.0/1.25/1.6/2.5-T	15	1.0/1.25/1.6/2.5	184/194/204/226		up10000×3240×3540	down12000×3200×3080
SZL20-1.0/1.25/1.6/2.5-T	20	1.0/1.25/1.6/2.5	184/194/204/226		up11000×3240×3540	down 14000×3200×3080

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
