DZL Series Steam Generator

Capacity 1~20t/h
Pressure 0.7/1.0/1.25 Mpa / 1.25/1.6Mpa
Fuel oil, gas, coal, biomass material, solid fuels, electricity
Application pharmaceutical industry, chemical industry, rubber processing, paper making, paper, wood processing, hotels, garment leather,
Certificate ISO, GSG, CE, CCC, BV

We're here to help:Easy ways to get the answers you need

Product description
Parameter
Inquiry

Introduction:

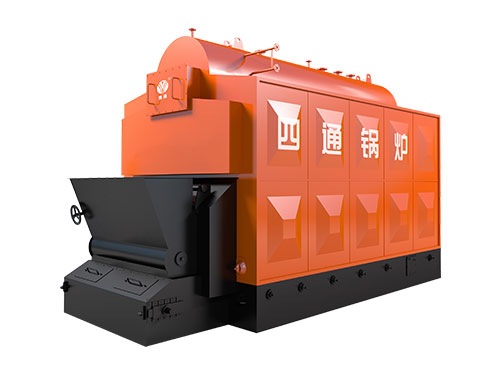

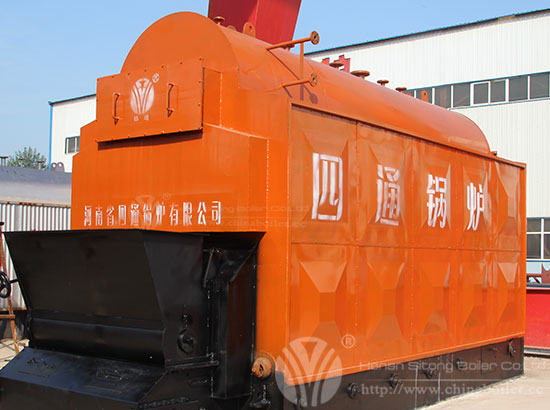

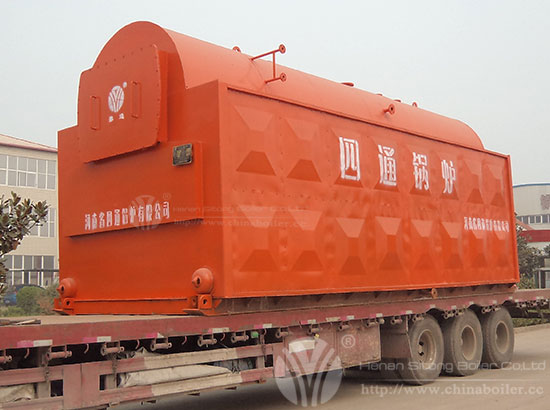

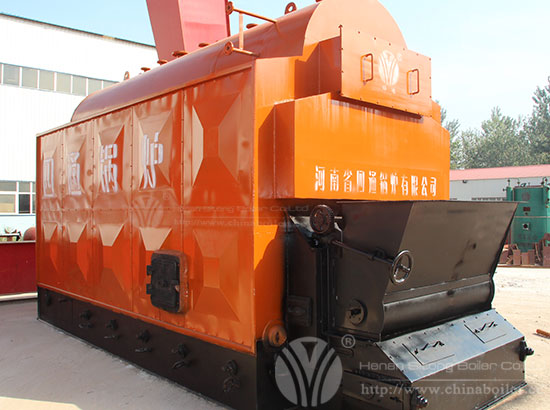

DZL series steam generator is the single drum longitudinal type chain grate steam generator. It can fuel various solid fuels, biomass fuels, such as coal, saw dust, straw, bagasse, etc. It can also set oil and gas as the heating fuel for steam. Thanks to the high heat transfer threaded pipe, the thermal efficiency can be improved up to over 96% compared with other traditional steam generators.

Application:

DZL series steam generator can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, paper, wood processing, hotels, garment leather, etc.

Performance Advantages:

1.Can achieve the simulation speed combustion, which can largely reduce the risk of explosion.

2.By adjusting the secondary speed air volume, the speed of fuel burning can be accurately controlled and reduce the energy loss

3.Adopt scale chain grate to achieve mechanized feeding uniformly, combustion is stable and easy to control.

4.Unlikely for tempering, easy for cleaning dust of the steam generator.

5.Compared with the same type boilers, this model is little volume, simplify appearance design and which can save most of its install space.

Parameter

Model	Rated steam capacity(t/h)	Rated pressure(MPa)	Rated steam temperature(℃)	Rated feed water temperature(℃)	Fuel type	Overall dimension of boiler assembled LWH（mm）
DZL1-0.7/1.0/1.25-AII	1	0.7/1.0/1.25	170/184/194	20	II-class bituminous coal, lower heat value Q≈21000KJ/Kg	5100×2200×3000
DZL2-0.7/1.0/1.25-AII	2	0.7/1.0/1.25	170/184/194	20		5500×2300×3300
DZL4-1.25/1.6-AII	4	1.25/1.6	194/204	20		6600×2600×3600
DZL6-1.25/1.6-AII	6	1.25/1.6	194/204	20		7500×2900×3800
DZL8-1.25/1.6-AII	8	1.25/1.6	194/204	20		8100×3100×3800
DZL10-1.25/1.6-AII	10	1.25/1.6	194/204	70		7700×3200×3600	8600×3000×2600
DZL15-1.6/2.5-AII	15	1.6/2.5	204/226	70		10000×3240×3540	12000×3200×30800
DZL20-1.25/1.6-AII	20	1.6/2.5	204/226	70		11000×3240×3540	14000×3200×30800

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
