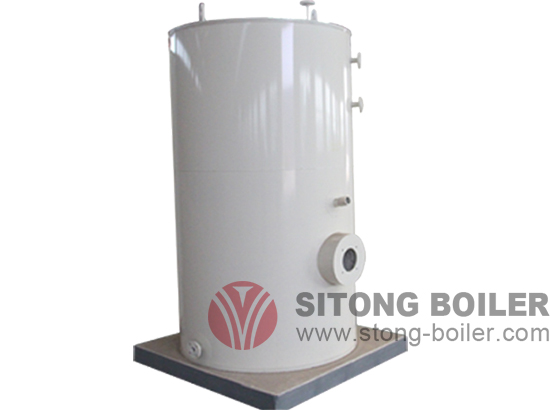

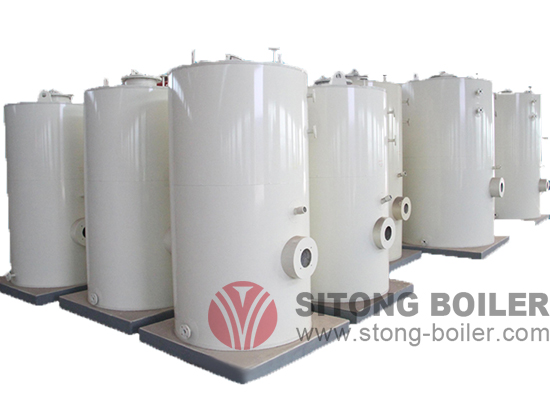

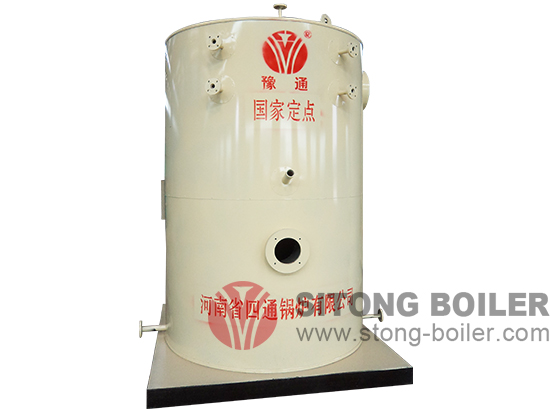

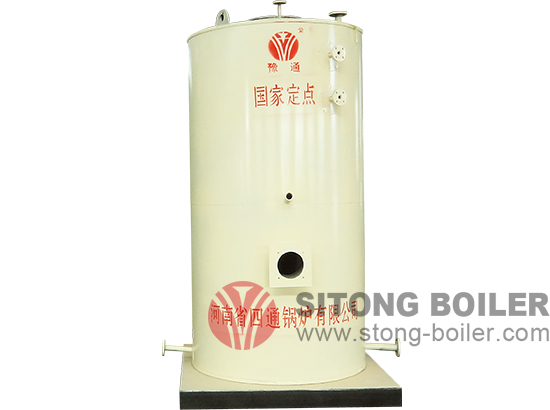

LSS Series Vertical Type Steam Boiler

Introduction:
Sitong LSS Vertical Series Steam Boiler is three-pass steam boiler with top-fired burner. The flame can completely spread from the top to the bottom and burn sufficiently. The gas need to make a three-return heat transfer, so the heat loss will be reduced and the thermal efficiency will be higher.

Application:
Sitong LSS series vertical type steam boiler can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, paper, wood processing, hotels, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. So are a variety of industrial productions, living and remote areas, and oil field. Even they can be used as a power plant boiler start-up.

Technical Advantages:
1. Compact structure,small footprint
    The boiler size is minized based on the precision calculation,  on the premise of sufficient output, thus the user can save the space and cost.
2. Sufficient heating
    The boiler has large heating area, fully absorb the effective heat, the exhaust gas temperature is low, thermal loss is low, thus it can have sufficient heating.
3. Quick steam production, high steam quality
    This series boiler can get enough pressured steam within only 20 minutes, it is applicable for the condition of on-off operation, as it can provide steam quickly and
    timely. It adopts steam separator inside the drum to separate steam, thus can guarantee the steam dryness.
4. Reliable pressure and water level protection,high safety performance
    The boiler volume is small, thus the degree of dangerous is probably smaller. Also, the safety performance is higher due to various controlling protection on
    pressure, water level  and over smoke temperature, etc.
5. Quick-loading,easy to install
    LSS series boiler is small size quick-loading boiler,vibration is low when operation,no special requests on foundation.
6. Environmental protect
    It has the function of dust removal, which makes the soot discharge meet the national environmental standards requirements.

Parameter

Model	LSS0.1-0.4-Y(Q)	LSS0.2-0.4-Y(Q)	LSS0.3-0.4-Y(Q)	LSS0.5-0.4-Y(Q)	LSS0.7-0.4-Y(Q)	LSS1-0.4-Y(Q)
			LSS0.3-0.7-Y(Q)	LSS0.5-0.7-Y(Q)	LSS0.7-0.7-Y(Q)	LSS1-0.7-Y(Q)
Rated temperature (t/h)	0.1	0.2	0.3	0.5	0.7	1
Rated steam pressure (Mpa)	0.4	0.4	0.4/0.7	0.4/0.7	0.4/0.7	0.4/0.7
Rated steam temperature (℃）	151	151	151/170	151/170	151/170	151/170
Water supply temperature（℃）	20	20	20	20	20	20
Thermal efficiency (％)	89	89.2	89.5	89.6	91	91
Fuel available	Light oil, heavy oil, natural gas
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.
