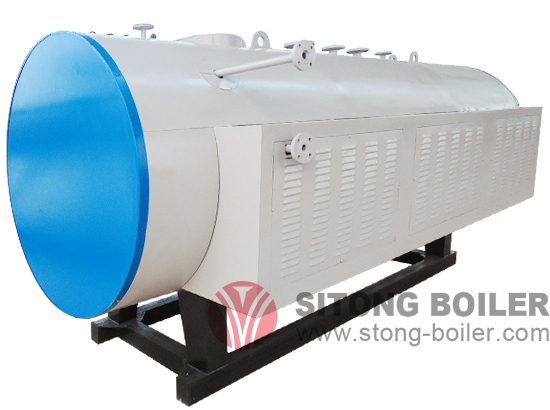

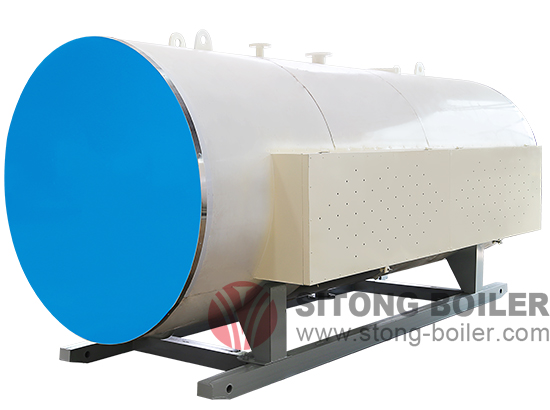

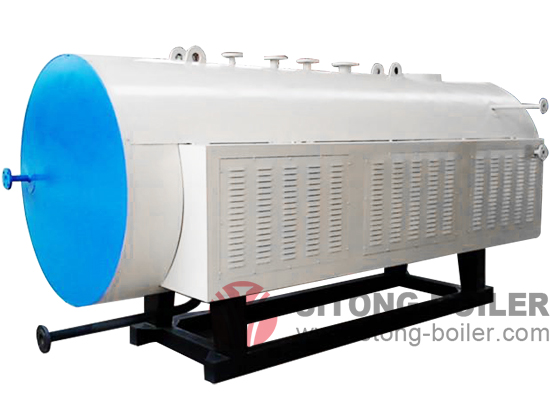

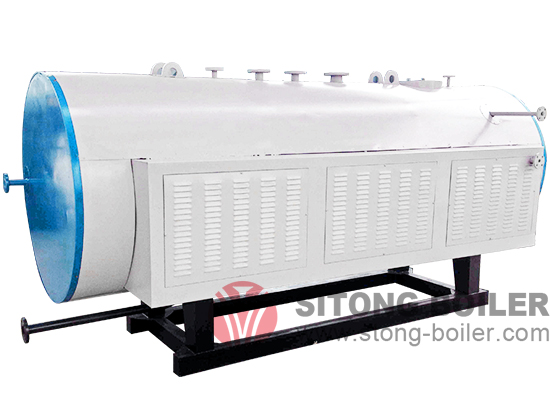

1745kw Electric Hot Water Boiler

Boiler Type:  Horizontal type hot water boiler fully electrically operated
Efficiency:  99%
Electrical data:  380V/3f/50HZ

Introduction
The thermal efficiency of this series horizontal electric hot water boiler reaches as high as 99%, and there is no NO_X released to the air.  The electrical control cabinet is separate from boiler body, which will not affect the boiler’s working life because of the aging of the electrical elements. The electrical heated tube can be used for about 20000 hours. This series boiler is very popular in the countries of Ethiopia, India, and Bangladesh, etc. Sitong Boiler sells more than 30 sets electric boiler to these places annually.



Application
This boiler is ideal for heating, textile plant, rice mill, garment factory, utility or power plant, hospital, hotel, food & beverage, diaries, schools, chemical industry and more applications.



Peculiarities of Sitong Electric Hot Water Boiler
1. All the electrical elements have the CE and CCC certification to make sure the boiler safety and long live.
2. Special design of internal structure, large heating area, high thermal efficiency (99%).
3. Seamless steel tube is used as the linner of the ceramic heating tube, high compression strength, 5~10 times using life longer than others.
4. The boiler uses SIMENS PLC electric control cabinet, displays in English. It shows boiler operation condition dynamically, and operator can set up parameters about temperature, pressure, time, etc.
5. Stainless steel shell is available, and we can design the specific boiler based on customers’ requirement.
6. The 100% NDT make sure the boiler life span more than 20 years.

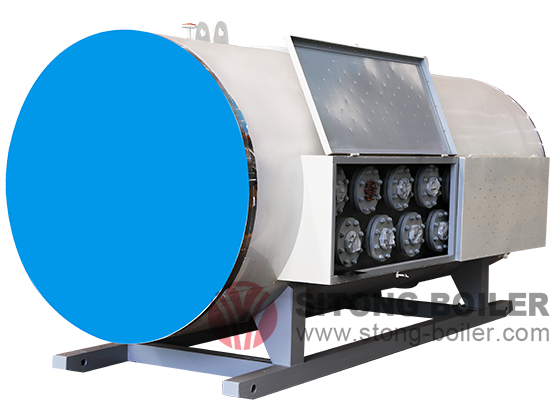

7. Each group electrical heating elements focus on type of flange connection to make the structure simple, safe and easy to repair.

Parameter

1745kw Electric Water Boiler Spare Parts List
No.	Name	Specification	Qty
1	water heater(boiler)	1500000kcal/h	1
2	hot water circulating pump	IRG100-200B	4
3	feed water pump	stainless steel	1
4	heat exchanger	30㎡	1
5	water treatment	250L resin	1
6		FLECK brand	1
7	electric control cabinet	ST-2.5	2
8	valve	DN100	12
9	valve	DN65	1
10	valve	DN25	4
11	valve	DN40	1
12	blow down valve	DN40	2
13	check valve	DN25	1
14	filter	DN100	1
15	flange	DN100	8
16	flange	DN80	2
17	flange	DN65	2
18	flange	DN40	4
19	flange	DN25	2
20	screws	16*60	400
21	screws	12*50	30
22	pressure gauge	/	4
23	electro connecting pressure gauge	/	1
24	there way cock	/	7
25	pressure gauge bent	/	5
26	pressure transmitter	/	2
27	thermometer	/	3
28	temperature sensor	/	2
29	water level sensor	/	1
30	overlock	/	1
31	pressure switch	/	1
32	water level resin tank	/	1
33	resin	bag	3
34	bend	DN100	8
35	bend	DN65	4
36	bend	DN40	10
37	bend	DN25	4
38	steam collector	/	1
39	water header	ф325	1
40	water tank	2CBM	1
41	connect pipes	1unit	1
42	pump steel foundation	steel	1
43	galvanized pipe	DN100	4
44	galvanized pipe	DN80	1
45	galvanized pipe	DN65	1
46	galvanized pipe	DN50	3
47	galvanized pipe	DN40	9
48	safety valve	PN40	1
49	insulation material	unit	1

Note: Parameter is for reference only, please inquire for the specific information.

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories

Company Strength
Sitong boiler is a national approved and designated enterprise, with design and manufacture license permits of Class A boiler and D1, D2 pressure vessel. The company has passed ISO 9001 international quality system certification, and gained the international certificates of CE, SGS, and BV, etc. The boiler products are exported to more than 60 countries. The factory covers an area of 120 thousands㎡, equipped with plenty of international advanced manufacture equipment, such as CNC cutting machine, automatic submerged arc welding machine, X-ray detection machine, etc.

case
