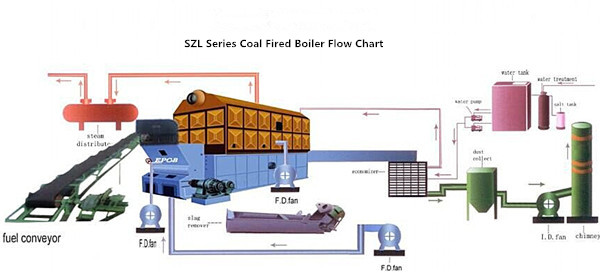

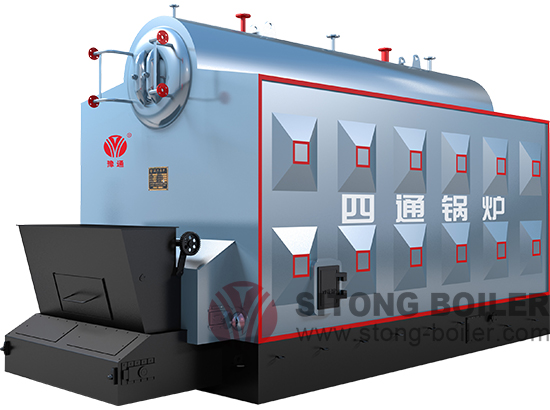

SZL Series Coal Fired Steam Boiler

Introduction:
SZL series water tube steam boiler  is designed by our engineer based on the advanced technology in domestic and international, which is the horizontal type double drum longitudinal type chain grate water tube boiler, it contains both steam generator and hot water boiler. This series boiler has reached the international advanced level on technology, performance, environment protection.



Application:

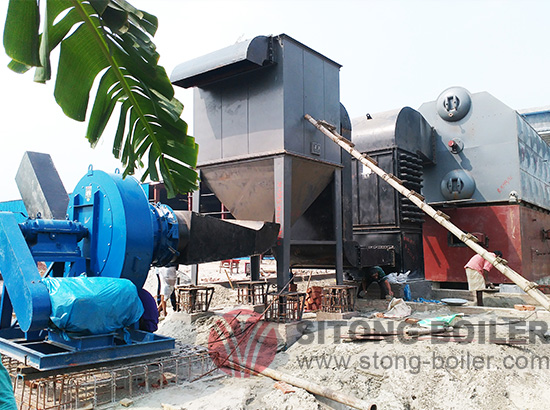

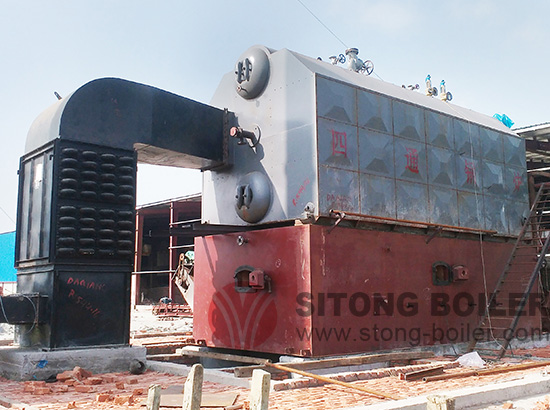

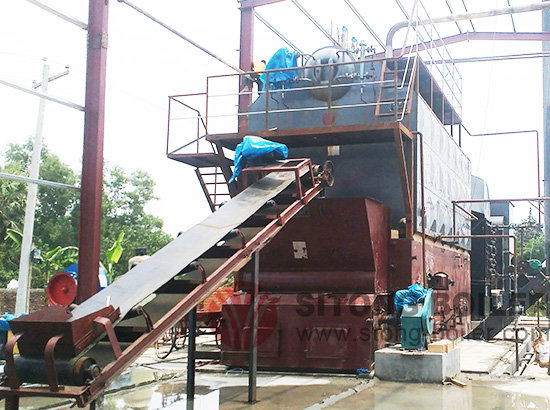

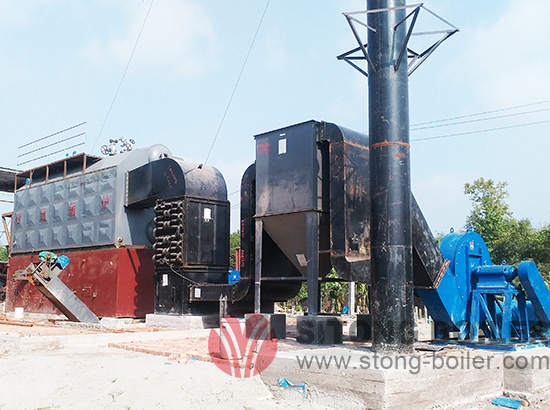

This series steam boiler is widely used in industry and life where need steam and heating, such as textile plant, rice mill, garment factory, utility or power plant, hospital, hotel, etc. The relevant capacity hot water boiler is widely used in industry and heating for civil use.

Technical Advantages:
1. Furnace arch adopts advanced design, forming obvious inverse “α” flue gas flow, which makes the boiler strong adaptability.
2. Boiler’s back and forth arches are water-cooling “warm arch” structure, which can protect furnace arch.
3. Boiler adopts bilateral inlet air and independent plenum structure, can adjust blast capacity and wind pressure of each plenum, to ensure the burning effect.
4. Grate back-shaft adopts roller bearing structure, to avoid sliding bearing over-burning.
5. The bottom road rail of grate adopts light rail, which improve the operation’s reliability.
6. The length of grate is 500-1000mm longer than domestic, which enhance the thermal efficiency.
7. Boiler design adopts light furnace wall structure, which makes the absorbed heating capacity reduce and the boiler starts and stops quickly.

Parameter

Model	Rated evaporation capacity (t/h)	Working pressure (MPa)	Rated steam temperature/ outlet temperature(℃)	Feed water temperature/ Return water temperature(℃)	Overall dimension part for transportation L*W*H（mm）
SZL2-0.8/1.0/1.25/1.6/2.5-AII	2	0.8/1.0/1.25/1.6/2.5	175/184/194/204/226	20/70	5500×2350×3650
SZL4-1.0/1.25/1.6/2.5-AII	4	1.0/1.25/1.6/2.5	184/194/204/226	20/70	7730×2360×3520
SZL6-1.0/1.25/1.6/2.6-AII	6	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 6150×2840×3540	down 7275×2852×2580
SZL8-1.0/1.25/1.6/2.7-AII	8	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 6971×2933×3540	down 8056×2945×2580
SZL10-1.0/1.25/1.6/2.8-AII	10	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 7855×3240×3540	down 9025×3200×2580
SZL15-1.0/1.25/1.6/2.9-AII	15	1.0/1.25/1.6/2.5	184/194/204/226	20/70	Up 10000×3240×3540	down 12000×3200×3080
SZL20-1.0/1.25/1.6/2.10-AII	20	1.0/1.25/1.6/2.5	184/194/204/226	20/70	up 11000×3240×3540	down 14000×3200×3080
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Transaction Process
Customer Inquiry -- Offer Professional Consulting Service -- Place Order -- Customize Boiler Based on Customers’ needs --Production-manufacturing -- Payment -- Impeccable After Sale Service (installation and debugging, periodic maintenance, etc.)

Offered Technical Documentations
Installment and Operation Instruction
Quality Certificate
Inspection Certificate of Boiler quality
General Drawing of Boiler
Foundation Drawing
Boiler Body Drawing
Boiler Room Design Drawing
Drawing of Valves, Instruments and Accessories
