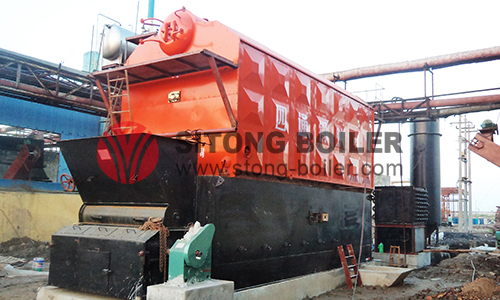

8ton SZL Series Chain Grate Steam Boiler for Bangladesh Gypsum Boards Factory"
Date:2016-12-21 share us:
Model: SZL8-1.0-AII
Rated Evaporation Capacity: 8ton (8t/h, 5.6MW, 4800000Kcal)
Working Pressure: 1.0 MPa (10bar, 10kg/m2, 145PSI)
Available Fuel: II class bituminous coal
Application: Gypsum boards factory
Characteristics of Sitong SZL Series Chain Grate Boiler:
Strong adaptability of solid fuels: coal, wood, biomass pellet, etc
Whole membrane water cooling combustion chamber and inverted "α" arch furnace technology achieve high combustion efficiency, high output
Prevent secondary combustion deformation and grate air leakage
Extended length of the grate, extended the coal burning time, improved the boiler thermal efficiency
Low boiler thermal inertia, furnace heat up fast, boiler start-up quickly
Flexible load adjustment
Light furnace wall structure reduce heating loss, start-up and stops quickly
