Sitong YY(Q)L series oil fired thermal oil boiler will burn natural gas or oil, and use heat conduction oil as the heat carrier, the heat conduction oil is forced to circulate through the hot oil circulating pump to transfer the heat to other required heating equipments. Vertical type thermal oil boiler have the characteristics of compact structure, small size, light weight, small floor space, simple installation and operation, fast heating and no environment pollution etc.
| Model | Rated thermal power (KW) | Working pressure (Mpa) | Working temperature (℃) | Thermal efficiency (%) | Overall dimension L×W×H (mm) | Reference weight (t) |
| YY(Q)L-120Y(Q) | 120 | 0.8 | 330 | 75 | 1600×1020×1520 | 1.5 |
| YY(Q)L-1000Y(Q) | 1000 | 0.8 | 330 | 85 | 3300×1670×2486 | 5 |
| YY(Q)L-2400Y(Q) | 2400 | 0.8 | 330 | 85 | 5080×2200×3180 | 9.8 |
| YY(Q)L-3000Y(Q) | 3000 | 0.8 | 330 | 85 | 5983×2420×3404 | 15.5 |
| YY(Q)L-4700Y(Q) | 4700 | 0.8 | 330 | 85 | 7285×2570×3760 | 21.5 |
| YY(Q)L-6000 Y(Q) | 6000 | 0.8 | 330 | 85 | 7800×3050×3800 | 25 |
| YY(Q)L-7000 Y(Q) | 7000 | 0.8 | 330 | 85 | 8200×3050×3800 | 27.5 |
| YY(Q)L-10000 Y(Q) | 10000 | 0.8 | 330 | 85 | 10000×3500×4000 | 32 |
| Notes:1. Parameter is for reference only, if any changes should follow actual drawings. 2. Here are parts of boiler products, Sitong boiler could customize the boilers based on boilers’ requirement. Please inquire for the details. |
||||||
Textile refers to a multi-scale structural processing technology for fibers or fiber aggregates. It will rely on the support and coordination of the steam boiler whether it's dyeing, drying, sizing, or printing and dyeing. The quality of steam boiler exh...
A special rubber and plastic company in Sri Lanka is one of the most professional production bases of industrial rubber plates in the region. It mainly produces special rubber plates, industrial rubber plates, anti-skid fitness series, water gate rubber s...
One of the largest local oil refineries in Madagascar has multiple oil tanks used to store different types of oil products. After the storage tank is used for a period of time, the impurities in the crude oil will be deposited on the tank bottom and the t...
In the process of cooking oil production, steam boiler mainly provides heat source for its drying, refining, decolorization and deodorization. The specific process of edible oil processing is generally raw material transportation, screening, shelling, cru...

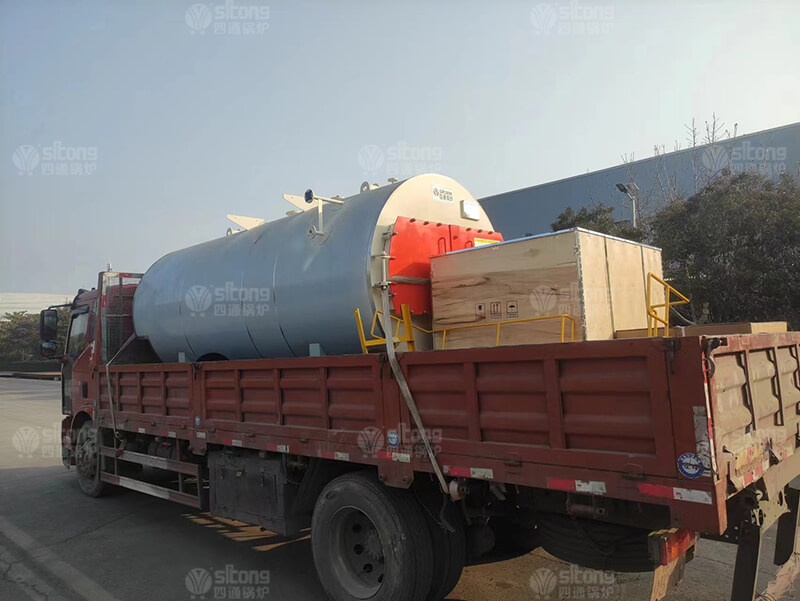

2 sets of WNS series boiler are shipping to Saudi Arabia, one is 1.0ton, and another one is 1.5ton steam capacity, these two boilers are used for laundry and dry cleaning. This is an old customer, last time, he bought the same model oil fired boiler, it i...
