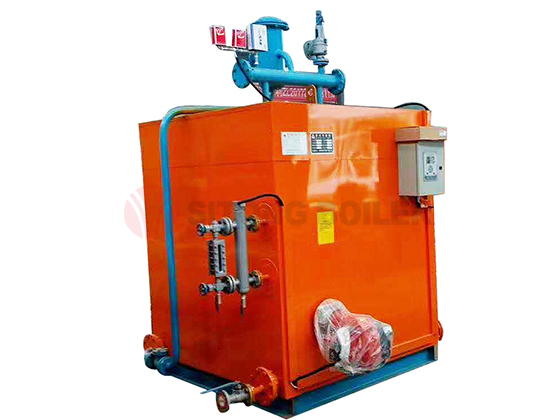

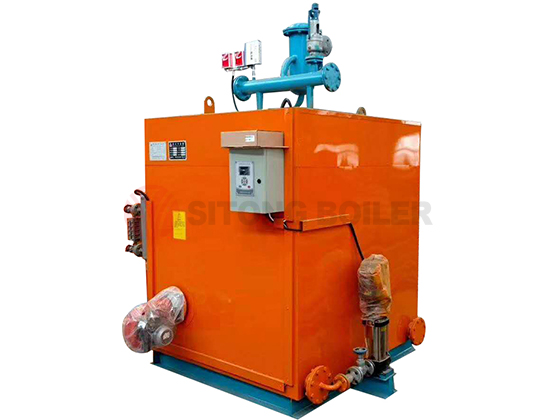

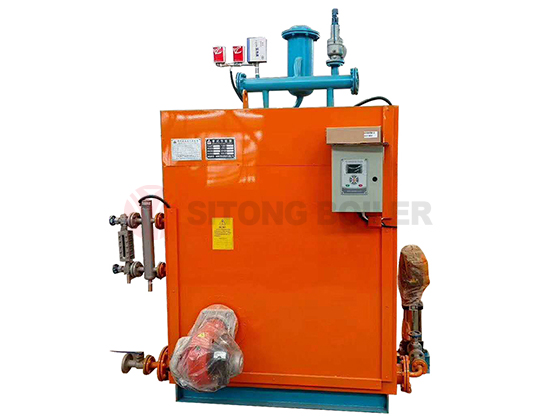

Oil Gas Fired Vertical Type Steam Generator

Capacity: 0.2~2t/h
Pressure: 0.4~0.7Mpa
Certificate: ISO 9001, CE, SGS, BV
Fuel: Diesel,Natural Gas, LPG, etc
Email:  [email protected]

Introduction

Oil/gas steam generator is full Automatic operating, has the characterietic of high efficiency and energy saving, environmental protection, steam continuous and stable output, high steam purity, complete set delivery, convenient and simple. The steam generator output saturated steam fast, inside steam storage room large & steam enough, matched import burner, no pollution, low- emission.

Oil Gas Fired Vertical Type Steam Generator

Application

  distillation, laundry, hotels, slaughter house, packaging, textile iron, brewery, leather, farming, food and beverage, plastics and foam, etc.

Performance Advantages

Skit- Mounted

  Skit-Mounted Type , installation and commission simple & convenient . No need make foundation , can directly running after connect water & electric supply . Save the room space and investment for user.

Output Steam Fast & High Steam Quality

  After 4 to 5 minutes ignition , then can got enough pressured steam output And it is applicable for the condition of on-off operation ,can provide steam quickly and timely.

High Automatically

  Automatically control combustion ,steam pressure and water level , ensure safe and economical operation.

High Efficiency & Sufficient Output

  The boiler heating area is sufficient ,fully absorb the effective heat, the exhaust flue gas temperature is low, thermal loss is low, thus it can have sufficient heating and big radiation heating surface.

Environmental Protection

  The boiler running quiet, no noise, and combustion stable, completely comply with the environmental protection standard.

Get Scheme Quotation for Free

Name *
Tel *
Email *

Parameter

Model FTSG0.2-0.4-YQ FTSG0.3-0.7-YQ FTSG0.5-0.7-YQ FTSG0.7-0.7-YQ FTSG01.5-0.7-YQ
Rated Steam Capacity (t/h) 0.2 0.3 0.5 0.7 1.5
Rated Steam Pressure (Mpa) 0.4 0.7 0.7 0.7 0.7
Rated Steam Temperature (℃) 150 170 170 170 170
Test Efficiency (%) 92-94 92-94 92-94 92-94 92-94
Electric Consumption (KW) 1 1 1.25 3.5 4.5
Natural Gas Consumption (Nm3/h) 15-20 18-28 25-35 31-58 80-105
Transportation Dimension (L*W*H) mm 1500*1250*2100 2000*1900*2500 2250*2550*2800 2400*2600*3000 2400*2620*3000
Voltage 380V  50HZ
Regulation Model Automatic
