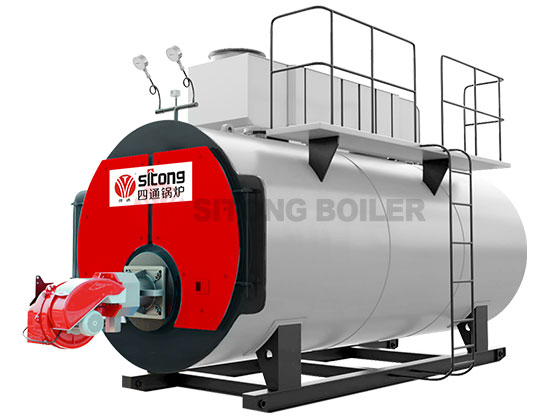

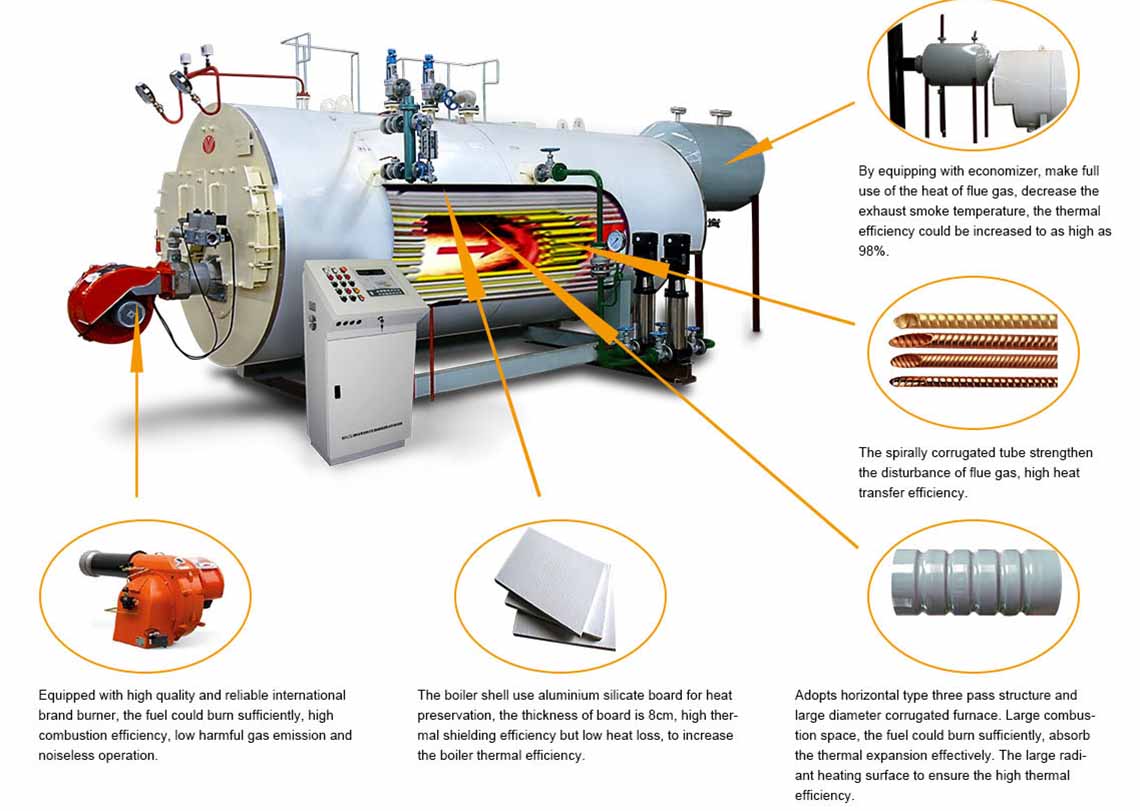

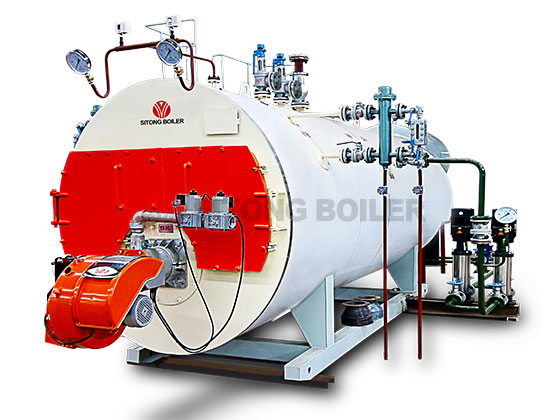

The horizontal type diesel fired hot water boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series diesel fired boiler is fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.
| Model | Rated Power (MW) | Working Pressure (MPa) | Efficiency (%) | Fuel consumption | Weight (kg) | Overall Dimension L×W×H (m) | ||
| Light Oil (kg/h) | LNG (Nm /H) |
CG (Nm /H) |
||||||
| WNS 1.05 | 1.05 | 0.7 | 91~93 | 98.5 | 119.4 | 253.7 | 3400 | 3.5×1.8×2.05 |
| WNS 1.75 | 1.75 | 1.0 | 91~93 | 164.2 | 198.9 | 422.8 | 4800 | 4.5×1.95×2.3 |
| WNS 2.1 | 2.1 | 1.0 | 91~93 | 197 | 238.7 | 507.3 | 6682 | 4.8×2×2.5 |
| WNS4.2 | 4.2 | 1.0 | 91~93 | 394 | 477.5 | 1014.6 | 12400 | 7.85×2.75×3.46 |
| WNS7 | 7 | 1.0 | 91~93 | 656.7 | 795.8 | 1691 | 15300 | 8.6×3.77×4.15 |
Note: 1. The hot value of LNG: 8500kal/Nm , hot value of light oil: 10300kal/Nm , hot value of the city coal gas: 4000kal/Nm 2. Parameter is for reference, if any changes, should follow the actual drawing. 3. Sitong boiler could customize the boiler products based on customers’ requirement. |
||||||||
