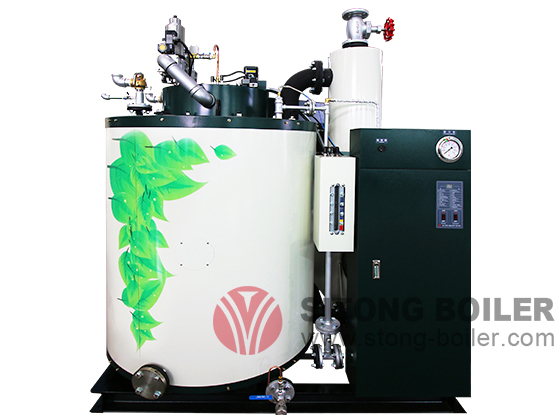

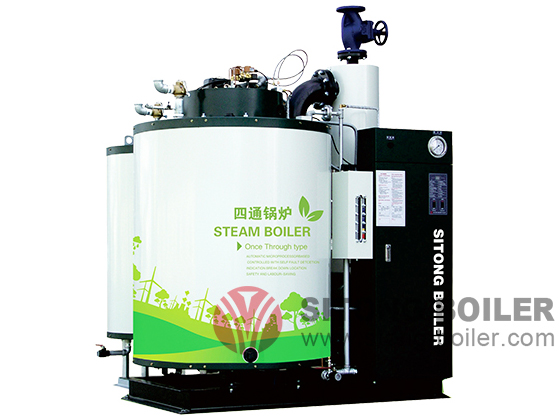

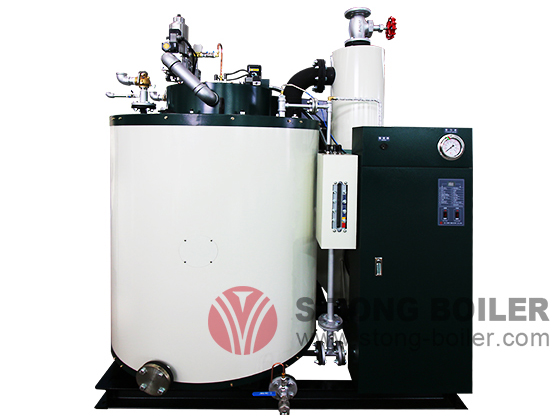

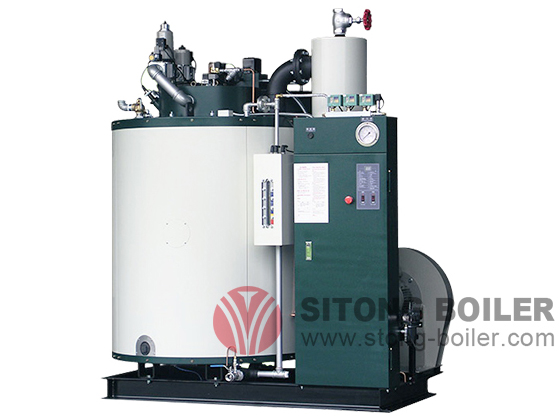

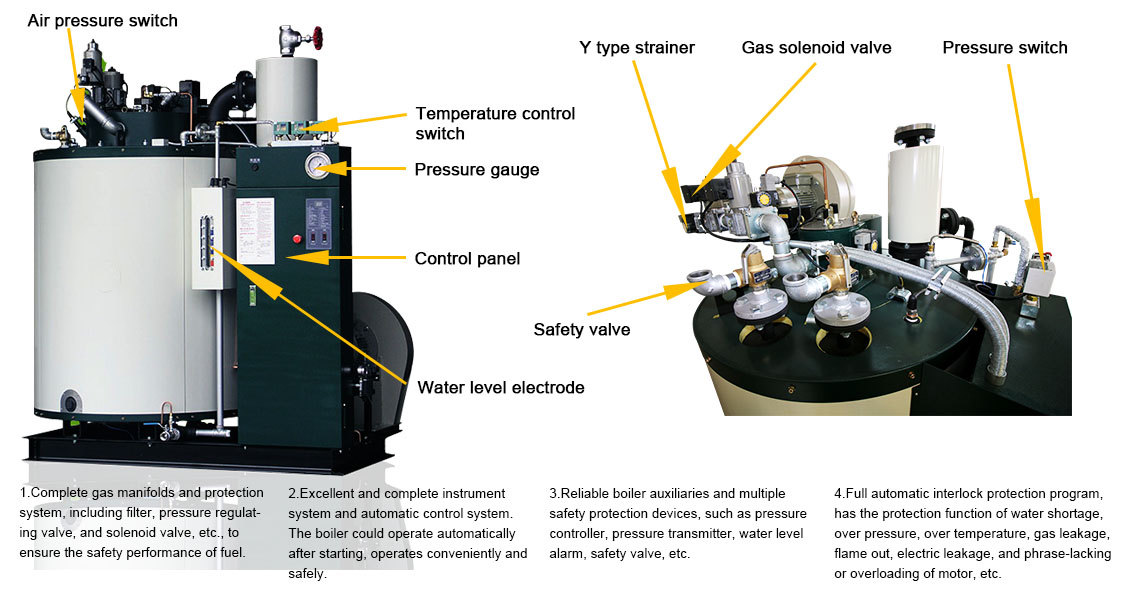

Sitong gas fired boiler is vertical type with high thermal efficiency (96%) and quick steam generation (3~5 minutes). This series boiler adopts once through structure, constructed with vertical water tubes, small steam capacity (0.1-2tph), low infrastructure investment and running quiet. The fuel could be oil, gas, and dual fuel. This gas fired steam generator is equipped with full automatic controllers on temperature, pressure, and water level, etc, to ensure highest safety and reliability. This gas fired steam generator is designed by Taiwan Zuhow Company, and produced jointly with Sitong Boiler, the manufacturing technique has reached the world advanced level. This type boiler is about 20% energy saving than the ordinary boiler. The once through boiler is delivered as a whole when leaving factory, it could operate just need to plug into electric power, there is no need any installation, save installation cost.
| Model | Steam Capacity (t/h) | Working Pressure (Kgf/cm ) |
Boiler Efficiency (%) | Heating Area (m2) | Weight (Kg) | Fuel Consumption | ||
| 13A (Nm3/h) | Propane (Kg/h) | Butane (Kg/h) | ||||||
| ZH-200G | 0.2 | 10 | 88 | 3.8 | 470 | 12.4 | 10.7 | 11.3 |
| ZH-300G/GE | 0.3 | 10 | 88/92 | 5.2 | 620/720 | 18 | 15.5 | 16.5 |
| ZH-500GE/GE1 | 0.5 | 10 | 92/94 | 7.0 | 1060/1060 | 30 | 26 | 27 |
| ZH-600GE/GE1 | 0.6 | 10 | 92/94 | 7.6 | 1100/1100 | 36 | 31 | 33 |
| ZH-1000GE1/GE2 | 1.0 | 10 | 94/96 | 9.9 | 1600/1690 | 85~90 | 73~78 | 77~82 |
| ZH-2000GE1/GE2 | 2.0 | 10 | 94/96 | 9.9 | 1980/2000 | 113~121 | 98~105 | 103~110 |
| Notes: 1. The parameter is for reference only, if any changes should follow the actual drawing. 2. The Lower heat valve: 13A=9900kcal/Nm3, LPG Propane=11460kcal/kg, LPG Butane=10900kcal/kg 3. Here are parts of boiler products, please inquire for the details. |
||||||||
Due to the promotion of energy conservation and emission reduction policies but also put forward higher requirements for some equipment and production conditions, how to reduce energy consumption as much as possible while meeting production requirements h...
2 sets of 6-ton WNS6-1.25-Y-Q oil gas fired steam boiler for a food production company in the Greece. It has been delivered in yesterday afternoon....
The textile industry, especially the production process of knit products has high temperature requirements. So it is crucial for textile production lines to have continuous and stable heating equipment. A textile enterprise in Indonesia that mainly produc...
5ton and 0.5ton natural gas fired steam boiler are shipped to Maldives, they are used in two different hotels. WNS series boiler is used for restaurant and laundry, the boiler is wet back structure, operate safely. LSS series boiler is used for laundry in...
A New Materials Technology Co., Ltd. in Saudi Arabia was established in 2008 and is one of the largest enterprises in the refractory metal industry in the country. The company has the world's top advanced production equipment, and has built a number of i...

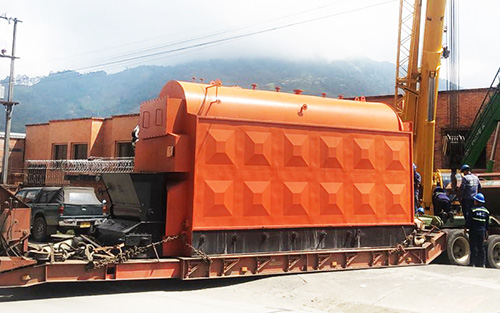

6ton DZL series boiler is installed in Columbia, the boiler is single drum with chain grate, the grate has the advantages of high automatic, low fuel leakage, and high temperature resistance (1200℃). The boiler could burn different kind of coal and biomas...
