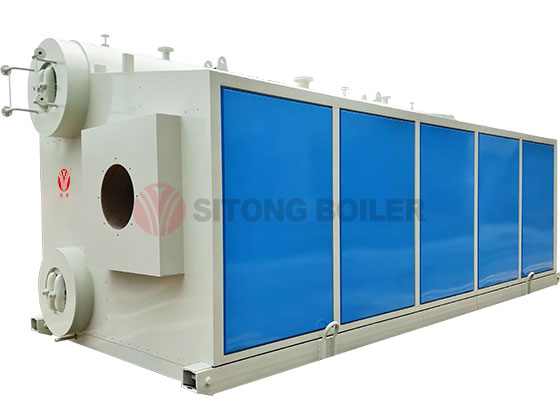

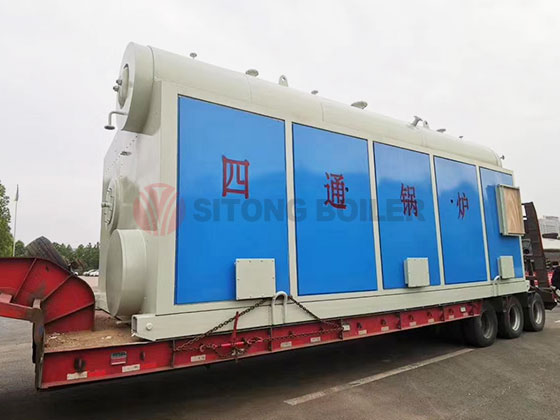

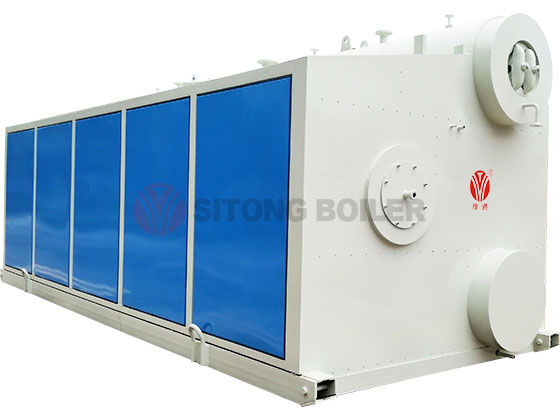

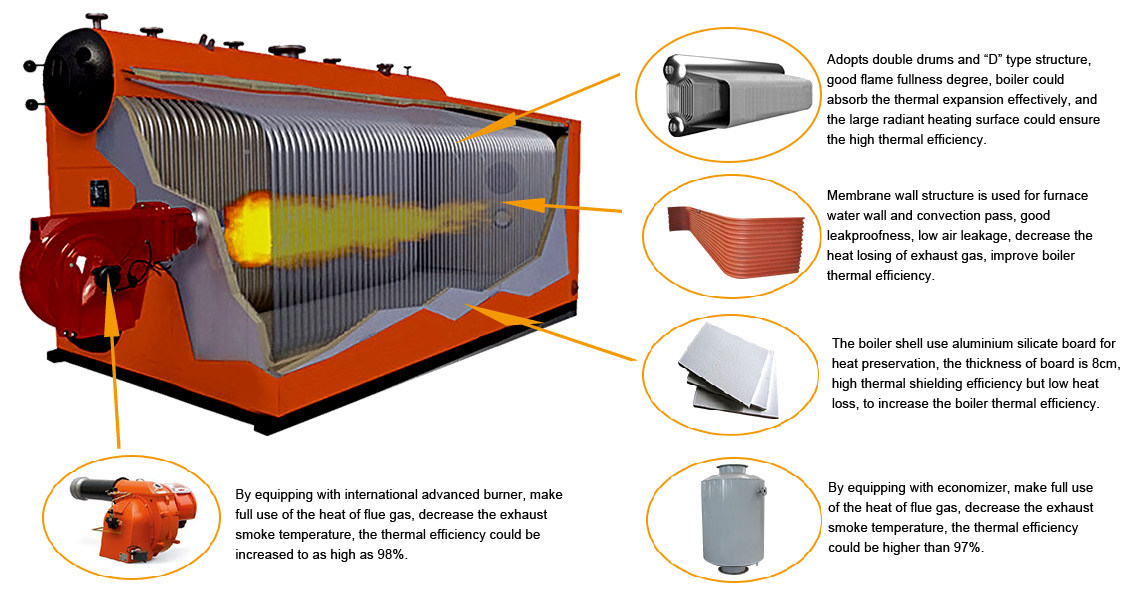

The structure of SZS series oil fired water tube boiler is arranged as drum longitudinal type “D” shape, it’s quickly assembled boiler with water tubes, has the characteristics of high steam quality, sufficient output, and high thermal efficiency (97%), etc. The structure of furnace water cooling wall and convection gas pass is membrane wall, have good sealability, and effectively reduce refractory brick quantity and maintenance workload. The layout of economizer at boiler tail could effectively reduces exhaust gas temperature and improve boiler thermal efficiency. This series oil fired water tube boiler is delivered as whole when leave factory, convenient for transportation, and has a short install period.
| Model | Rated Evaporation (t/h) |
Working Pressure (Mpa) |
Fuel Consumption | Overall Dimension (mm) |
Maximum Weight for Transportation (t) |
|
| Light Oil (kg/h) | Natural Gas (Nm3/h) | |||||
| SZS2-1.25-Y(Q) | 2 | 2.5 | 140 | 172 | 5.7×1.9×3.6 | 20.4 |
| SZS10-1.25-Y(Q) | 10 | 1.25 | 646 | 806 | 7.2×3.4×3.3 | 36.7 |
| SZS15-1.0-Y(Q) | 15 | 1 | 1043 | 1209 | 7.1×3.7×3.5 | 38 |
| SZS20-1.25-Y(Q) | 20 | 1.25 | 1165 | 1403 | 10.8×7×4.8 | 41 |
| SZS25-2.45-Y(Q) | 25 | 2.45 | 1458 | 1773 | 10.8×7×4.8 | 60 |
| SZS30-1.25-Y(Q) | 30 | 1.25 | 1718 | 2092 | 12.9×7×4.8 | 64 |
| SZS35-2.45-Y(Q) | 35 | 2.45 | 2048 | 2468 | 12.9×7×4.8 | 68 |
| SZS50-2.45-Y(Q) | 50 | 2.45 | 3218 | 3878 | 13.2×12×4.7 | - |
| Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2. Here are parts of boiler products, Sitong boiler could customize the specific boiler based on customers’requirement. |
||||||
