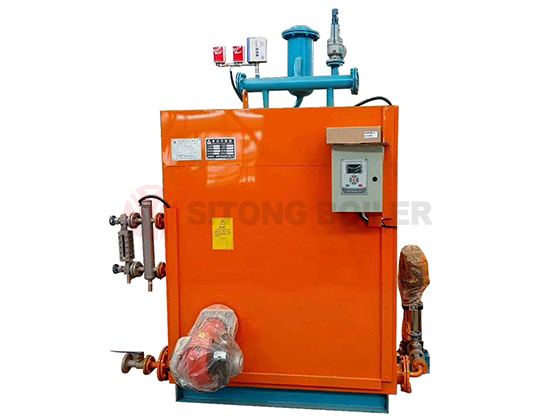

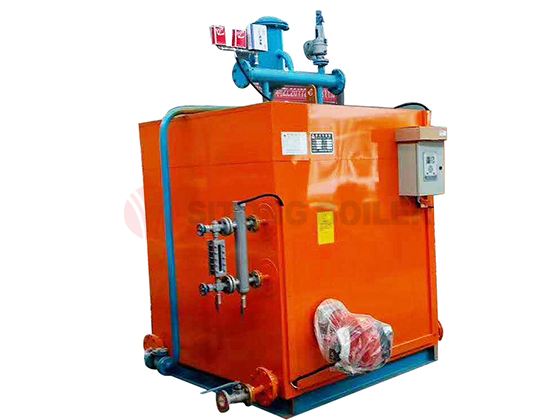

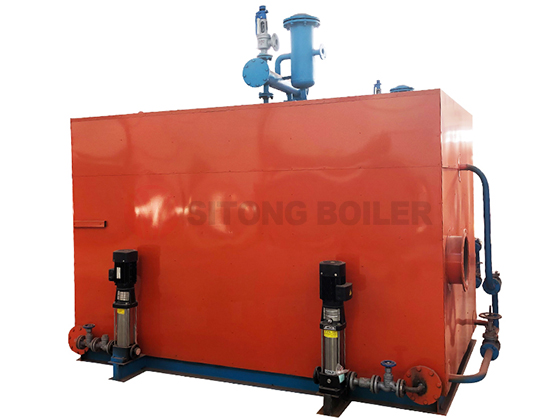

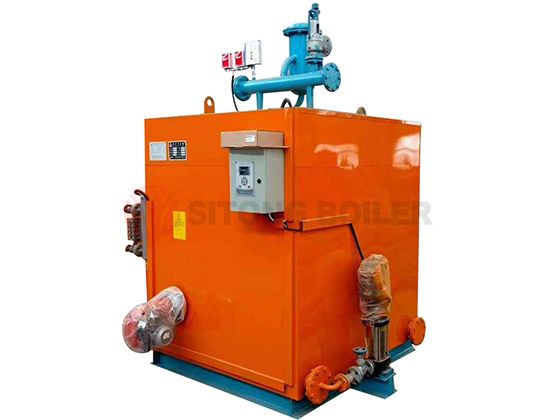

Oil/gas steam generator is full Automatic operating, has the characterietic of high efficiency and energy saving, environmental protection, steam continuous and stable output, high steam purity, complete set delivery, convenient and simple. The steam generator output saturated steam fast, inside steam storage room large & steam enough, matched import burner, no pollution, low- emission.
laundry, hotels, cleaning, slaughter house, food and beverage etc.
Skit- Mounted
Skit-Mounted Type , installation and commission simple & convenient . No need make foundation , can directly running after connect water & electric supply . Save the room space and investment for user.
Output Steam Fast & High Steam Quality
After 4 to 5 minutes ignition , then can got enough pressured steam output And it is applicable for the condition of on-off operation ,can provide steam quickly and timely.
High Automatically
Automatically control combustion ,steam pressure and water level , ensure safe and economical operation.
High Efficiency & Sufficient Output
The boiler heating area is sufficient ,fully absorb the effective heat, the exhaust flue gas temperature is low, thermal loss is low, thus it can have sufficient heating and big radiation heating surface.
Environmental Protection
The boiler running quiet, no noise, and combustion stable, completely comply with the environmental protection standard.
| Model | FTSG0.2-0.4-YQ | FTSG0.3-0.7-YQ | FTSG0.5-0.7-YQ | FTSG0.7-0.7-YQ | FTSG01.5-0.7-YQ |
| Rated Steam Capacity (t/h) | 0.2 | 0.3 | 0.5 | 0.7 | 1.5 |
| Rated Steam Pressure (Mpa) | 0.4 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated Steam Temperature (℃) | 150 | 170 | 170 | 170 | 170 |
| Test Efficiency (%) | 92-94 | 92-94 | 92-94 | 92-94 | 92-94 |
| Electric Consumption (KW) | 1 | 1 | 1.25 | 3.5 | 4.5 |
| Natural Gas Consumption (Nm3/h) | 15-20 | 18-28 | 25-35 | 31-58 | 80-105 |
| Transportation Dimension (L*W*H) mm | 1500*1250*2100 | 2000*1900*2500 | 2250*2550*2800 | 2400*2600*3000 | 2400*2620*3000 |
| Voltage | 380V 50HZ | ||||
| Regulation Model | Automatic | ||||

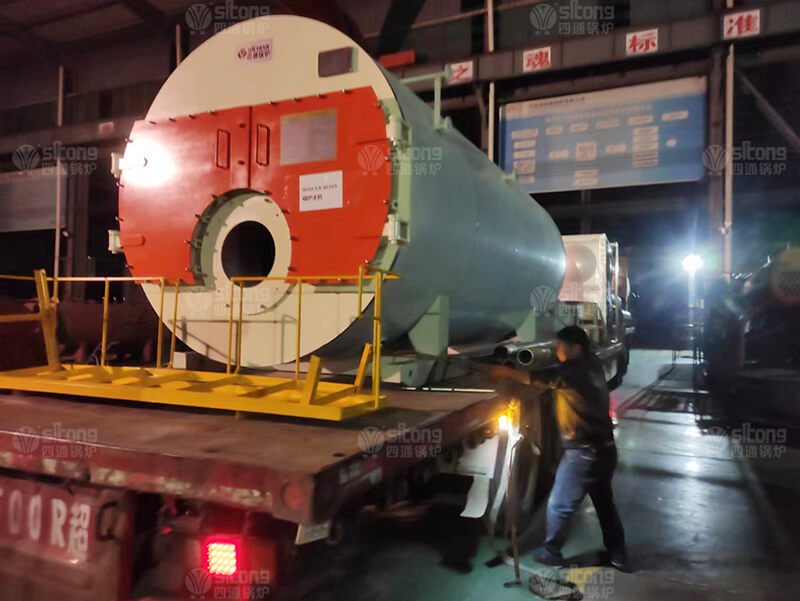

2 sets of 6-ton WNS6-1.25-Y-Q oil gas fired steam boiler for a food production company in the Greece. It has been delivered in yesterday afternoon....
