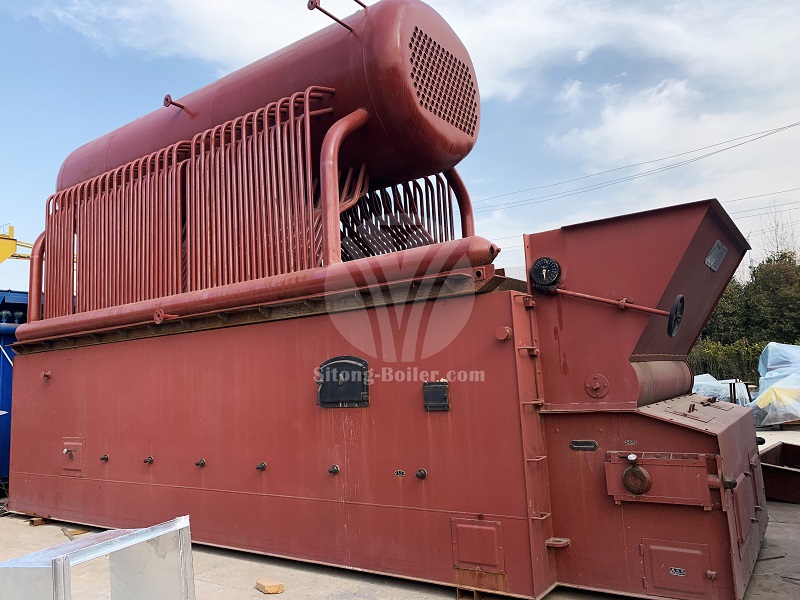

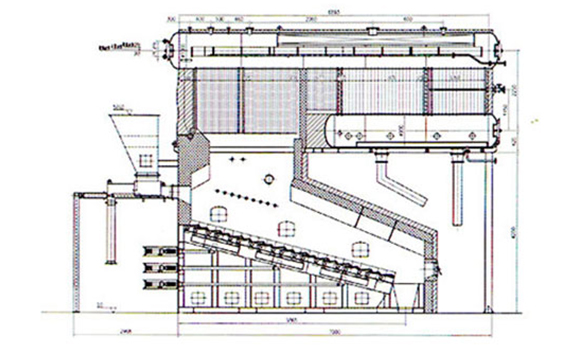

SZW series coconut shell boiler is a double-drum water-tube steam boiler. The boiler is divided into two parts: the upper body and the lower combustion equipment. The upper body of the boiler is composed of upper and lower drums, water-cooled walls connected to the left and right headers, and a convection tube bundle between the upper and lower drums. The inside is a furnace wall made of refractory bricks and refractory concrete and front and rear arches; the outside is a steel frame and Skin board, with insulation material in the middle.
edible oil, palm oil, coconut products, animal feed, paper mill, rice mill, alcohol, sugar mill, textile, chemical, power plant etc.
1. Small footprint
Compact structure, small floor space, single-story layout of the boiler room, and low capital investment.
2. Short cycle
High degree of assembly, short installation period and low installation cost.
3. High thermal efficiency
The heating surface is fully and reasonably arranged, the boiler heats up quickly, the pressure rises quickly, the output is sufficient, and the thermal efficiency is high.
4. Fully burn
The grate is divided into air chambers for air intake, each air volume is independently adjustable, and the furnace discharge is steplessly adjusted to achieve full combustion.
| Model |
Rated Steam Capacity (t/h) |
Working Pressure (MPa) |
Thermal Efficiency (%) |
Overall Dimension L×W×H (m) |
Weight (t) |
||
| SZW10-1.25/1.6/2.5 | 10 | 1.25/1.6/2.5 | 81 | 8.2×3.5×5.7 | 87 | ||
| SZW12-1.25/1.6/2.5 | 12 | 1.25/1.6/2.5 | 81 | 10.6×3.6×5.7 | 100 | ||
| SZW15-1.25/1.6/2.5 | 15 | 1.25/1.6/2.5 | 82 | 12.5×3.7×5.8 | 105 | ||
| SZW20-1.25/1.6/2.5 | 20 | 1.25/1.6/2.5 | 82 | 13.8×4.2×5.8 | 140 | ||
| SZW25-1.25/1.6/2.5 | 25 | 1.25/1.6/2.5 | 82 | 15.6×5×6.135 | 170 | ||
| SZW30-1.25/1.6/2.5 | 30 | 1.25/1.6/2.5 | 82 | 17.7×8.5×9.5 | 210 | ||
|
Note:1.Parameter is for reference only, if any changes should follow the factory technical data. 2. Our company can design boiler products based on customers’ requirement and different biomass fuels. |
|||||||
A tobacco product company in the Philippines is mainly responsible for the production and sales of tobacco products, tobacco materials and tobacco machine parts. Recently, in order to conform to the development situation of local cigarette industry, the t...
15ton-coal-fired-membrane-boiler-in-pakistan...
The feed industry is an important component of the development of agriculture and animal husbandry. While steam boiler as a common energy equipment are widely used in the production process of the feed industry. Steam boilers mainly convert water into ste...
In the process of cooking oil production, steam boiler mainly provides heat source for its drying, refining, decolorization and deodorization. The specific process of edible oil processing is generally raw material transportation, screening, shelling, cru...
Industrial boilers are important energy equipment for the development of the seafood deep processing industry, providing necessary heat sources for food cooking, disinfection, frying and other processing processes. Sitong Boiler as a well-known boiler sup...
Thermal oil heater is an important equipment to provide heat energy for the process flow of hot melt solidification, high temperature steaming, drying, finalization, etc. in the printing and dyeing industry. A printing and dyeing company in Nigeria specia...
With the continuous development of economy and society, the textile industry in Bangladesh uses new materials, new processes and new technologies to promote industrial restructuring. As the cornerstone of the development of the textile industry, the indus...
Model: DZL4-1.25-AII Rated Evaporation Capacity: 4 t/h (4tph, 2.8MW, 2400000Kcal) Working Pressure: 1.25 MPa (12.5bar, 12.5kg/m2, 181PSI) Available Fuel: II class bituminous coal Application: Palm Oil Mill...

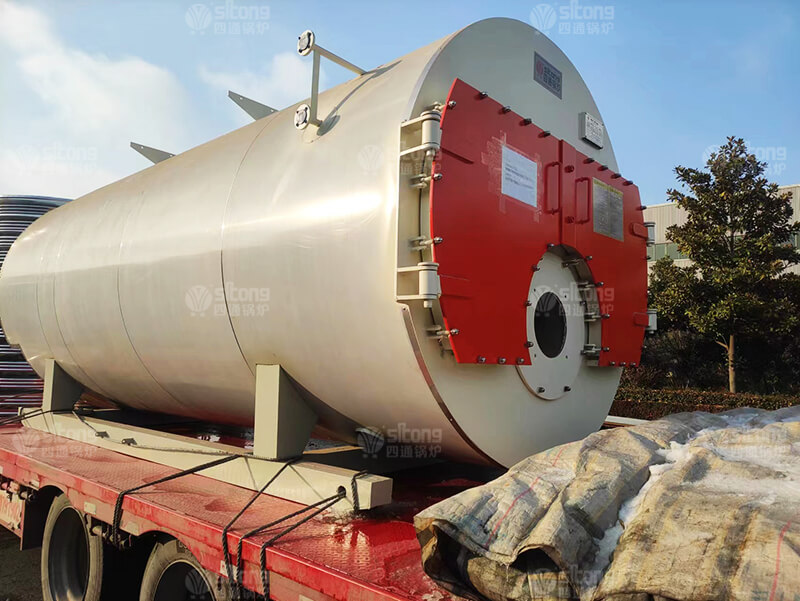

This WNS series boiler is extra low nitrogen emission, it is equipped with advanced oil gas burner, has high combustion efficiency and low nitrogen emission. moreover, it takes advantages of high efficiency condenser and economizer, to absorb the sensible...
