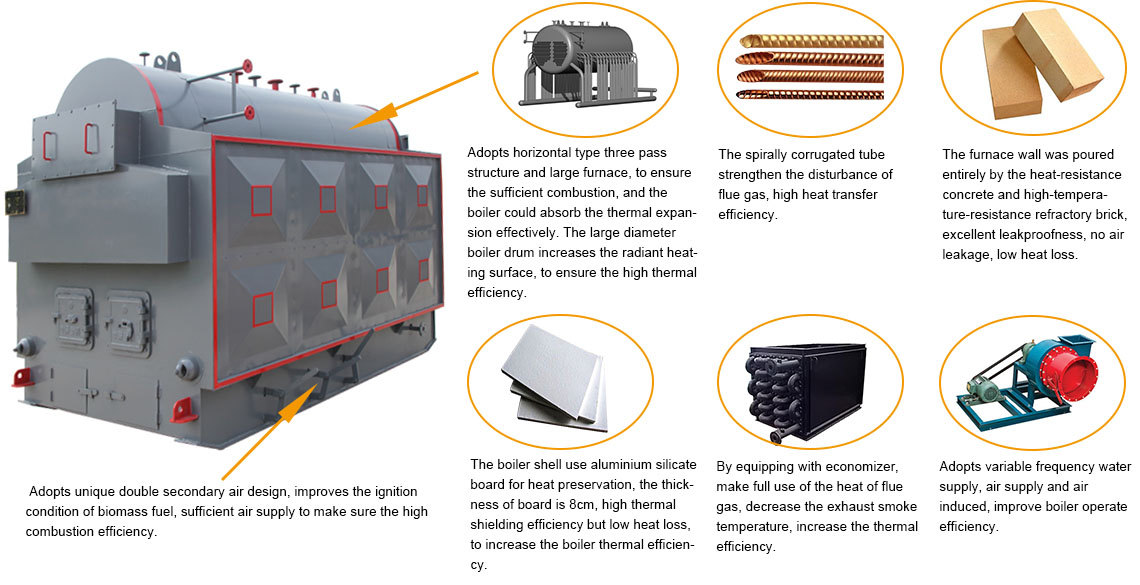

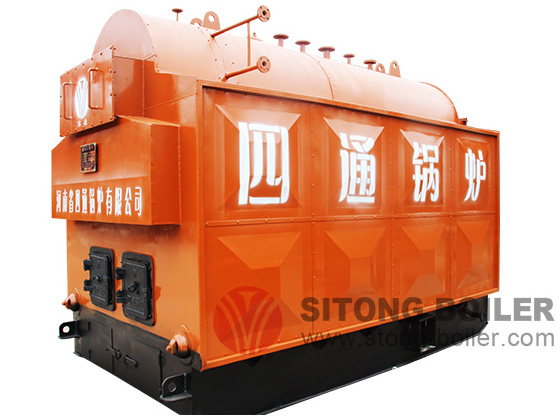

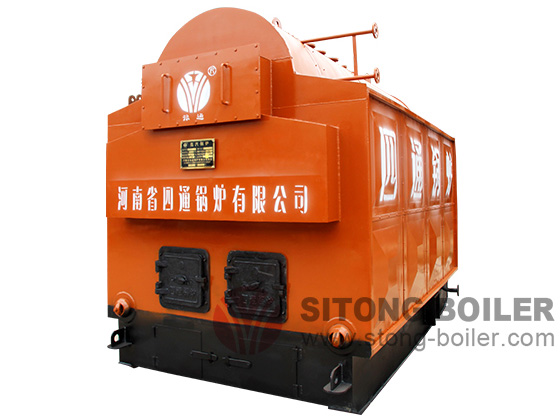

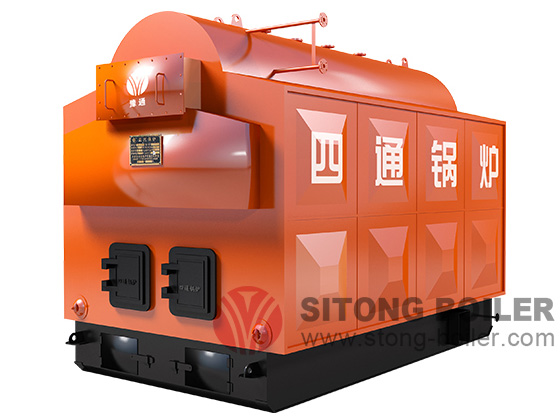

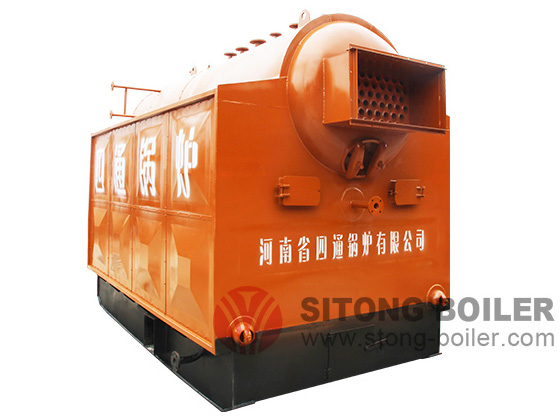

Wood fired moving grate steam boiler is single drum water tube and fire tube boiler, combustion equipment is moving grate. Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and screw fire tube in the drum are convection heating area. This wood fired steam boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode. The drum is welded assembly by cylinder and front back tube plate. This furnace structure in reasonable arrangement and high efficiency. This wood fired chain grate steam boiler uses the new scientific achievement, such as arch tube plate, screw fire tube to solve the problem of tube plate flaw, water wall tube explosion, low efficiency, insufficient output, poor adaptability of different biomass fuel, improve the heat transfer.
| Model | Rated evaporation capacity (t/h) | Working pressure (Mpa) | Thermal Efficiency (%) | Fuel consumption (Kg/h) | Overall dimension L×W×H (mm) | Weight (t) |
| DZH0.5-0.7/1.0-T | 0.5 | 0.7/1.0 | 78 | 150 | 3228×2000×2656 | 8 |
| DZH1-0.7/1.0/1.25-T | 1 | 0.7/1.0/1.25 | 80 | 301 | 4108×2200×2915 | 12 |
| DZH2-0.7/1.0/1.25/1.6-T | 2 | 0.7/1.0/1.25/1.6 | 80 | 602 | 4700×2300×3270 | 15 |
| DZH4-1.25/1.6-T | 4 | 1.25/1.6 | 80 | 1190 | 5600×2550×3563 | 22 |
| Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. 2. Our company can design boiler products based on customers’ requirement and different biomass fuels. |
||||||
