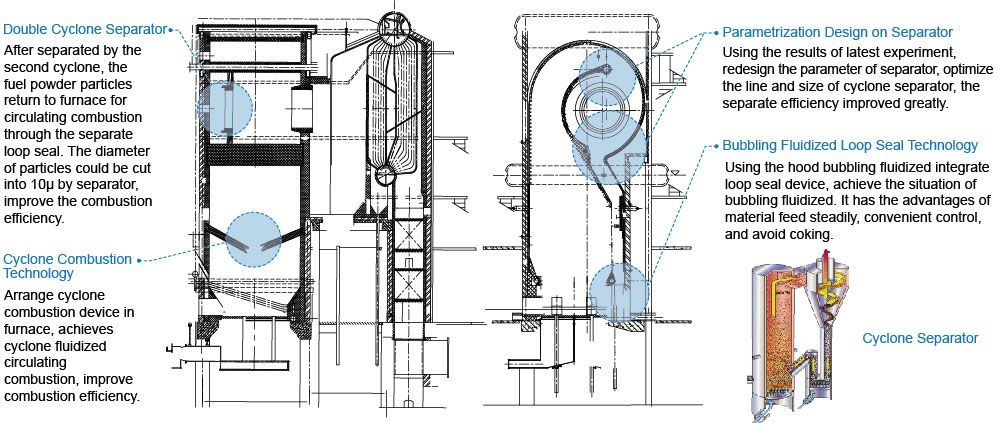

The new type double cyclone circulating fluidized bed boiler with low speed is a new generation, which is designed by Tsinghua University: Zhengzhou Research Institution of Low Speed Circulating Fluidized Bed Boiler. The boiler inherits the original technology advantages, at the same time, makes big breakthrough on the technology of cyclone design on combustion, cyclone separator structure & parametric design, and loop seal system. The boiler is awarded as national patent product.
Sitong new type double cyclone circulating fluidized bed boiler is a high efficiency, energy saving and environmental protect equipment. It is generally used in power station, central heating, city heating, paper plant, etc.
1. Compact structure
2. Low thermal loss
Integrate furnace, separator and loop seal system by using membrane water wall, structure compact.
3. Adopts anti wear design
The loop seal system is composed of two membrane water walls, and the partial heat carried by the fly ash is absorbed by the water wall tube.
A number of measures used on anti wear design, reduce the fluidization velocity, prevent the wear of separator heating surface and membrane water wall.
4. Various kinds of coal are adaptable.
5. The fault rate is extremely low
low-temperature combustion technology, reduce the generation of noxious gas, the limestone can be added to the furnace for desulfuration, harmful gas emissions can meet the environment requirement without use of any denitrification equipment.
| Model | Rated Evaporation Capacity(t/h) | Rated Steam Pressure (MPa) | Rated Steam Temperature (℃) | Feed Water Temperature (℃) |
Design Efficiency(%) |
Body Dimension (mm) |
| ZDG-25/3.82-M | 25t/h | 3.82MPa | 450℃ | 105℃ | ≥86 | 12650×8530×13200 |
| ZDG-35/3.82-M | 35t/h | 3.82MPa | 450℃ | 105℃ | ≥86 | 13350×9880×15800 |
| ZDG-35/5.29-Q | 35t/h | 5.29MPa | 485℃ | 150℃ | ≥86 | 13350×9880×15800 |
| ZDG-40/3.82-M | 40t/h | 3.82MPa | 450℃ | 105℃ | ≥86 | 14530×10280×18800 |
| ZDG-65/3.82-M | 65t/h | 3.82MPa | 450℃ | 140℃ | ≥86 | 15530×11080×21300 |
| ZDG-75/3.82-M | 75t/h | 3.82MPa | 450℃ | 150℃ | ≥86 | 16240×10600×33500 |
| ZDG-130/3.82-M | 130t/h | 3.82MPa | 450℃ | 150℃ | ≥86 | 21060×14400×40650 |
| Note: Parameter is for reference only, the specific should follow the design institution. | ||||||
In the process of feed production, feed raw materials need to be heated to ripen so that they can be easily digested and absorbed by animals. Therefore, boiler is an indispensable heat source equipment in feed processing industry. As a developing country...

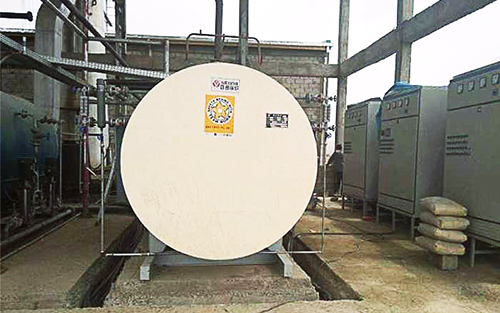

The thermal efficiency of Sitong electric steam boiler could reach 99%, and there is no NOx released to the air. The boiler adopts high quality electrical heated tube, work for about 20000 hours. It uses stainless steel electric heating tubes has high com...
WNS series gas fired wet back boiler is fire tube three pass structure, has high thermal efficiency. This series boiler has the characteristics of compact structure, safe operation, convenient installation, low pollution and low noise, it is widely used f...
A plastic products factory in Nigeria is a manufacturer specializing in processing foam boxes, foam external wall insulation, pearl cotton, foam boxes and other plastic products. In the processing process of plastic products, plastic heating, shaping and...

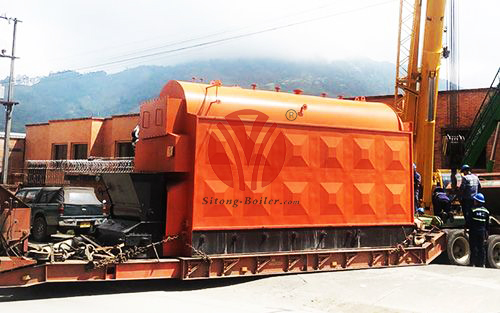

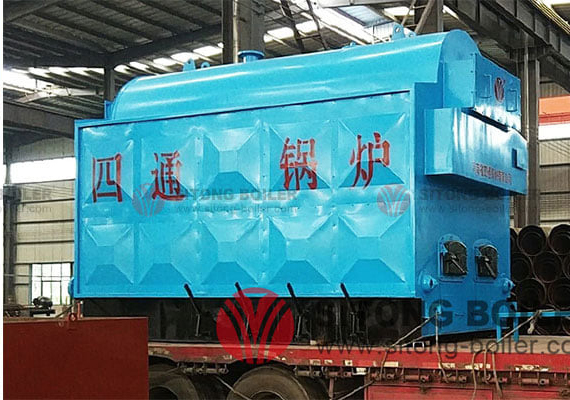

DZL series coal fired stoker boiler is single drum, the combustion equipment is chain grate stoker.This stoker boiler adopts several environmental protect measures (bag dust collector, double towers desulfurization, etc.) to meet the national emission req...
